Price: $192.60 Lead Time: 5 Days

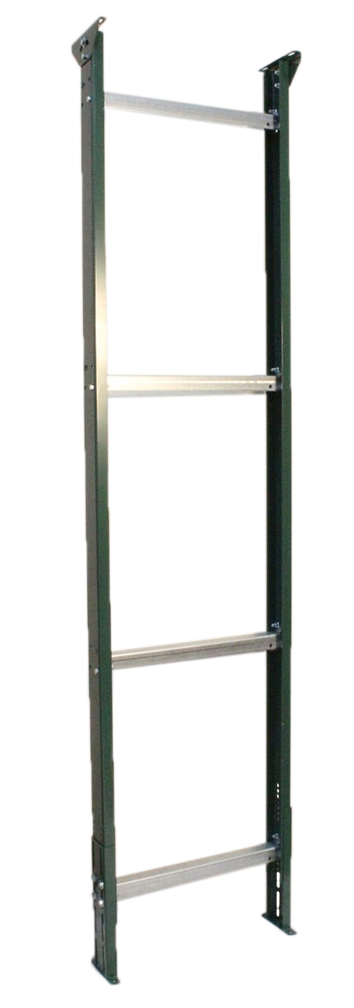

H-stand supports are used for permanent installations of gravity and powered conveyors. The 3BH30 model is a 3,000 lb. capacity support and is designed to mate with 2-1/2" and 3-1/2" channel frames. For 4" frames use the 4BH30 or H50 supports. Additionally we offer castered supports, multitier supports, and low profile supports to meet your material handling needs. Match the between frame of the support to the between frame of the conveyor.


  • Between Frame (in): 19"
  • Min Height (in): 97 1/4"
  • Max Height (in): 109 1/4"
  • No of Crossbraces: 4
  • Capacity (lbs): 3,000
  • Weight (lbs): 59
