4BH30M103B07

4BH30M103B07

Price: $183.00 Lead Time: 5 Days

Description:

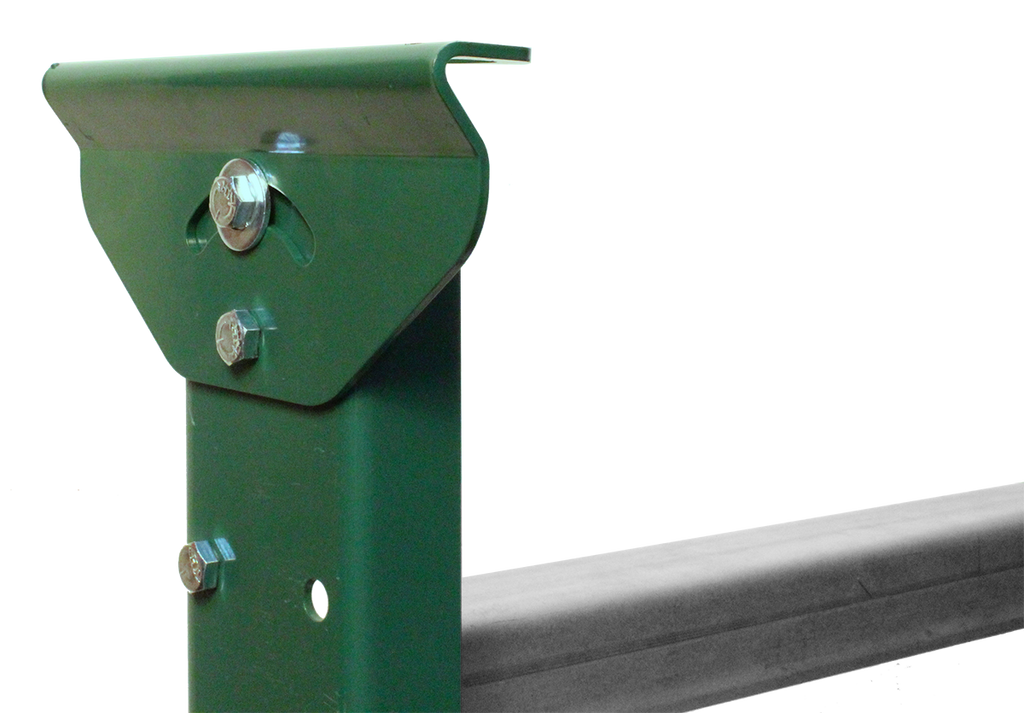

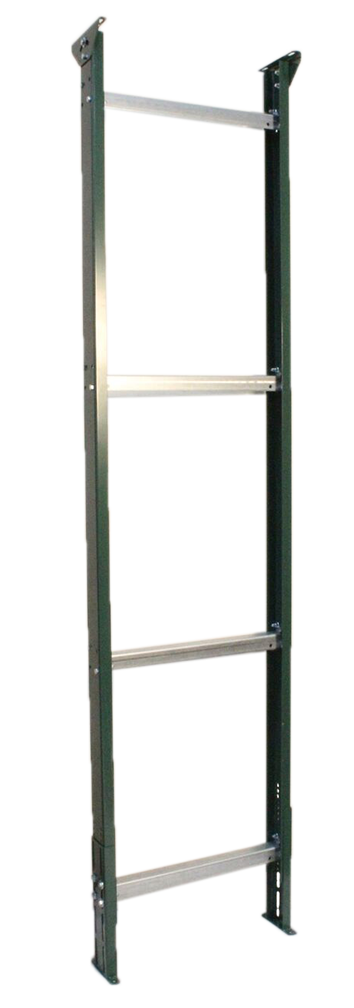

H-stand supports are used for permanent installations of gravity and powered conveyors. The 4BH30 model is a 3,000 lb. capacity support and is designed to mate with 4" channel frames. For 2-1/2" and 3-1/2" frames use the H15 or 3BH30 supports. Additionally we offer castered supports, multitier supports, and low profile supports to meet your material handling needs. Match the between frame of the support to the between frame of the conveyor.

Construction:

  • Between Frame (in): 7"
  • Min Height (in): 97 1/4"
  • Max Height (in): 109 1/4"
  • No of Crossbraces: 4
  • Capacity (lbs): 3,000
  • Weight (lbs): 55

Quantity

  • 5+
  • 25+
  • 50+
  • 100+

Per unit price

  • $177.51
  • $173.85
  • $170.19
  • $164.70
Add to Project List
