5F90T03B47BP

i LEAD TIME: 12 working days
$2,234.50

Product Model Information

The Model 5F_ _T roller conveyor is constructed of 4"x5.4# Painted Steel side channels, 2-5/8"x7ga Plain Stl tubing, 11/16" Hex Plain Stl roller shaft, and Butt Plate couplers.

Refer to the Roller Conveyor Selection Guide for help.

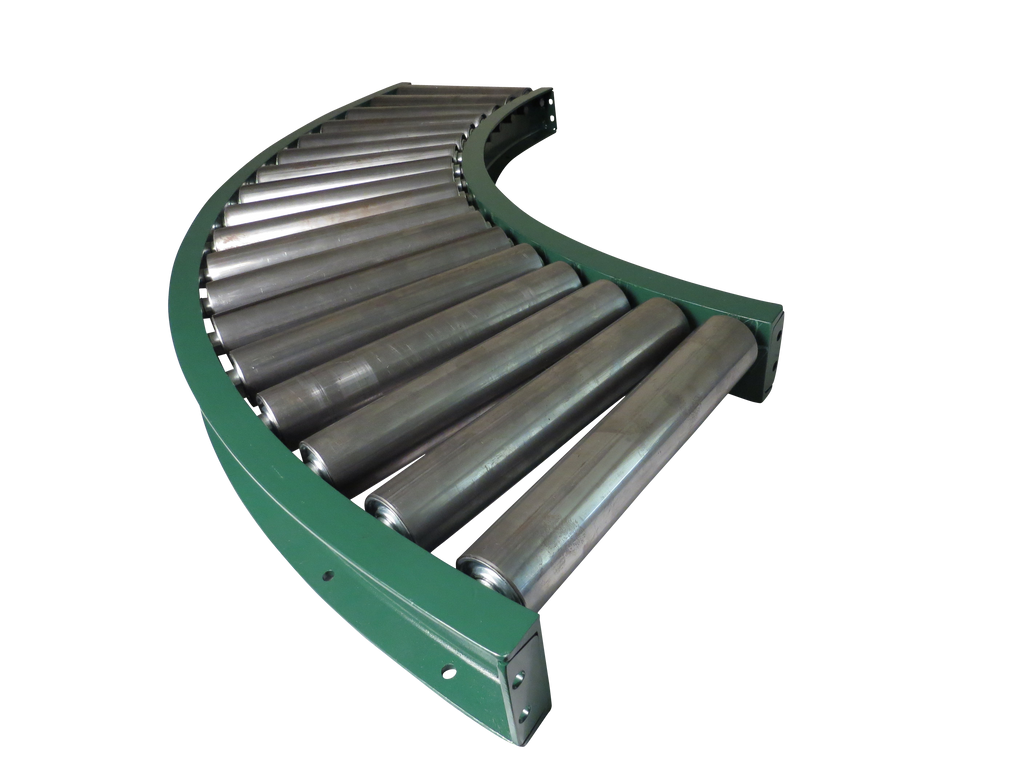

5F90T03B47BP Construction

  • Type: Curve
  • Angle (deg): 90
  • Inner Radius (in): 32.5
  • Between Frame (in): 47
  • Roller Centers (in): 3
  • Roller Bearing: Commercial Light Oil
  • Sleeve: none
  • Roller Capacity (lbs): 640
  • Frame Capacity (lbs/ft): 300 on 10' support centers, 1,550 on 5' centers
  • Weight (lbs): 498.3

5F_ _T Configurations

  • Roller Centers (in): 3, 4.5, 6
  • Straights (ft): 5, 10
  • Curves (deg): 45, 90
  • Sleeve: none
