BRG138X18GA5/16HLO

i LEAD TIME: 2 working days
$1.38

Product Model Information

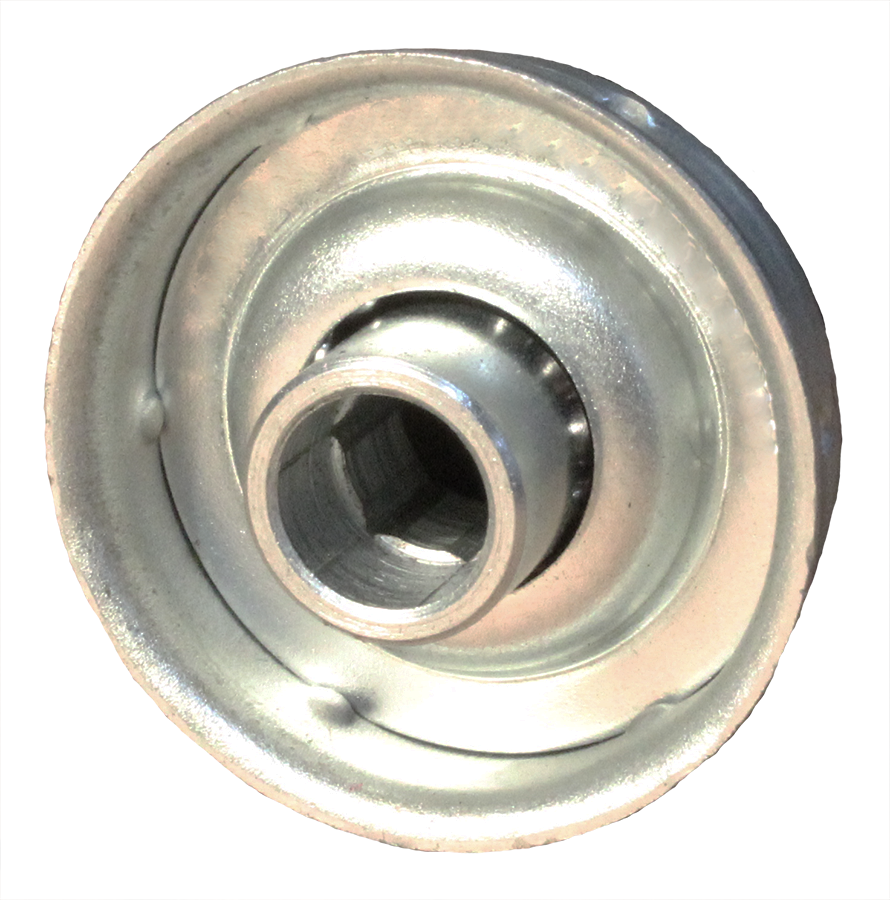

The Model BRG138X18GA5/16HLO roller bearing is a Swage style bearing. This bearing is designed to fit 1.375x18GA tubing and a 5/16 Hex shaft.

Refer to the Roller Selection Guide for help.

BRG138X18GA5/16HLO Construction

  • Tube Size: 1.375x18GA
  • Axle (in): 5/16 Hex
  • Capacity (lbs): 47
  • Ball Material: Carbon Stl
  • Inner Race Material: Carbon Stl
  • Outer Race Material: Carbon Stl
  • Hub Material: Steel
  • Max RPM: 200
  • Temp Range (F): -10-220
  • Lube: Light Oil
  • Seals: none
  • Fit: Swage
  • Weight (lbs): 0.2

Roller Bearing Configurations

  • Capacity (lbs): 47 to 3,150
  • Axle Size: 1/4 round, 5/16 hex, 7/16 hex, 11/16 hex
  • Tube Size: 1-3/8x16GA, 1-3/8x18GA, 1.9x12GA, 1.9x16GA, 1.9x9GA, 2-1/2x14GA, 2-1/2x11GA, 2-5/8X7GA
