RB19018BGP12RE3/4A1PE60
i LEAD TIME: 20 working days
$4,707.20
Product Model Information

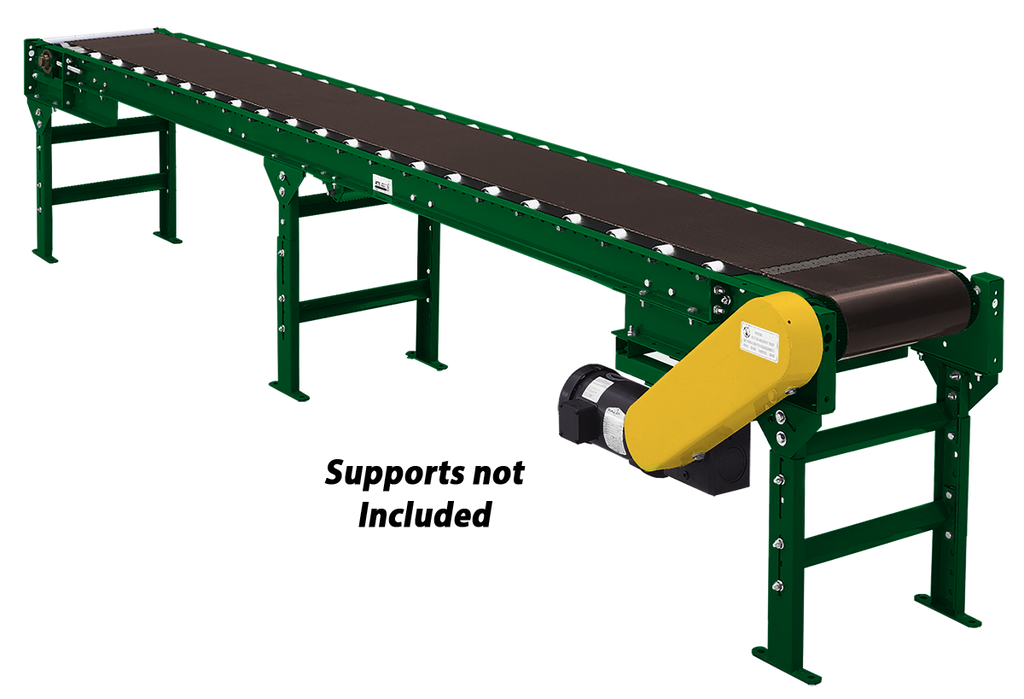

The Model RB190 power belt conveyor is constructed of 1.9x16 ga galvanized steel rollers on 6" centers mounted within 3-1/2" 11 ga channels, 4" end pulleys, and 1.9"diameter return rollers.
Refer to the Power Belt Conveyor Selection Guide for help.
RB19018BGP12RE3/4A1PE60 Construction
- Type: Roller Bed Channel Frame
- Overall Length (ft): 12
- Drive: End Drive Right Hand
- Belt: General Purpose Smooth Black PVC
- Belt Width (in): 18
- Motor: 3/4 HP 120/240 VAC 1ɸ
- Speed (FPM): 60
- Roller Centers (in): 6
- Load Capacity 10' Support Centers at no Incline(lbs/ft): 120
- Load Capacity 5' Support Centers at no Incline(lbs/ft): 341
- Load Capacity 10' Support Centers at 15 Deg Incline(lbs/ft): 55
- Load Capacity 5' Support Centers at 15 Deg Incline(lbs/ft): 55
- Load Capacity 10' Support Centers at 25 Deg Incline(lbs/ft): 36
- Load Capacity 5' Support Centers at 25 Deg Incline(lbs/ft): 36
- Weight (lbs): 388
RB190 Configurations
- Overall Length (ft): 7, 12, 17, 22, 32, 42, 52
- Drive: End Drive Right Hand, Center Drive Right Hand
- Belt Width: 6, 12, 18, 24, 30, 36
- Belt: General Purpose Smooth Black PVC, Rough Top Black SBR, FDA/USDA Food Grade White Buna-N
- Motor: , , , , ,
- Speed (ft/min): 30, 40, 60, 90
