Product Model Information

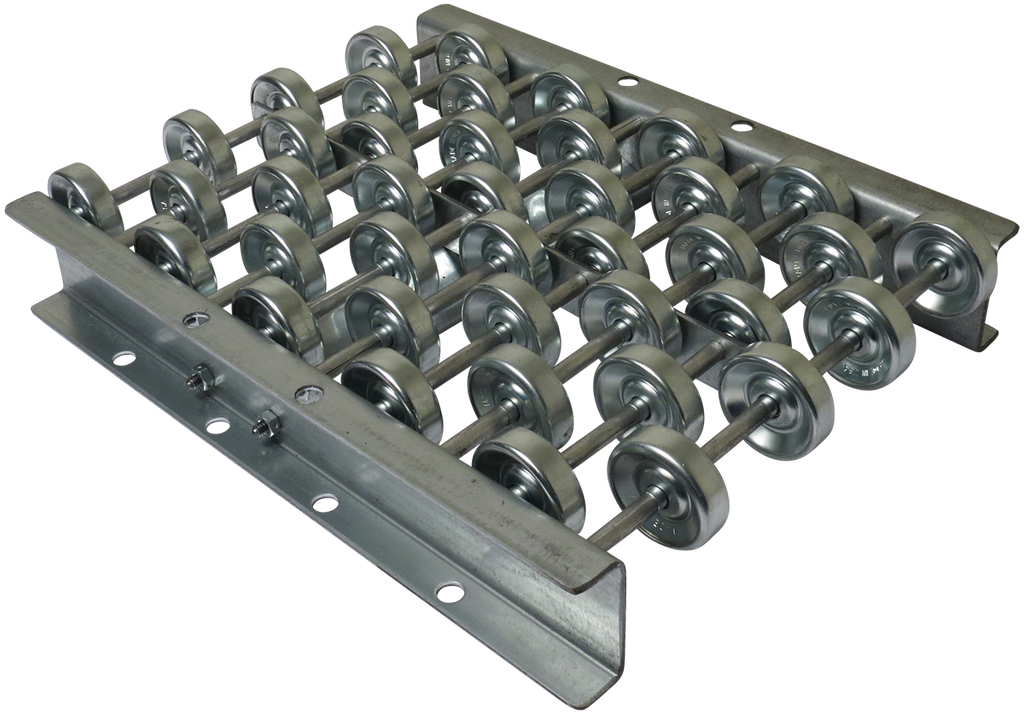

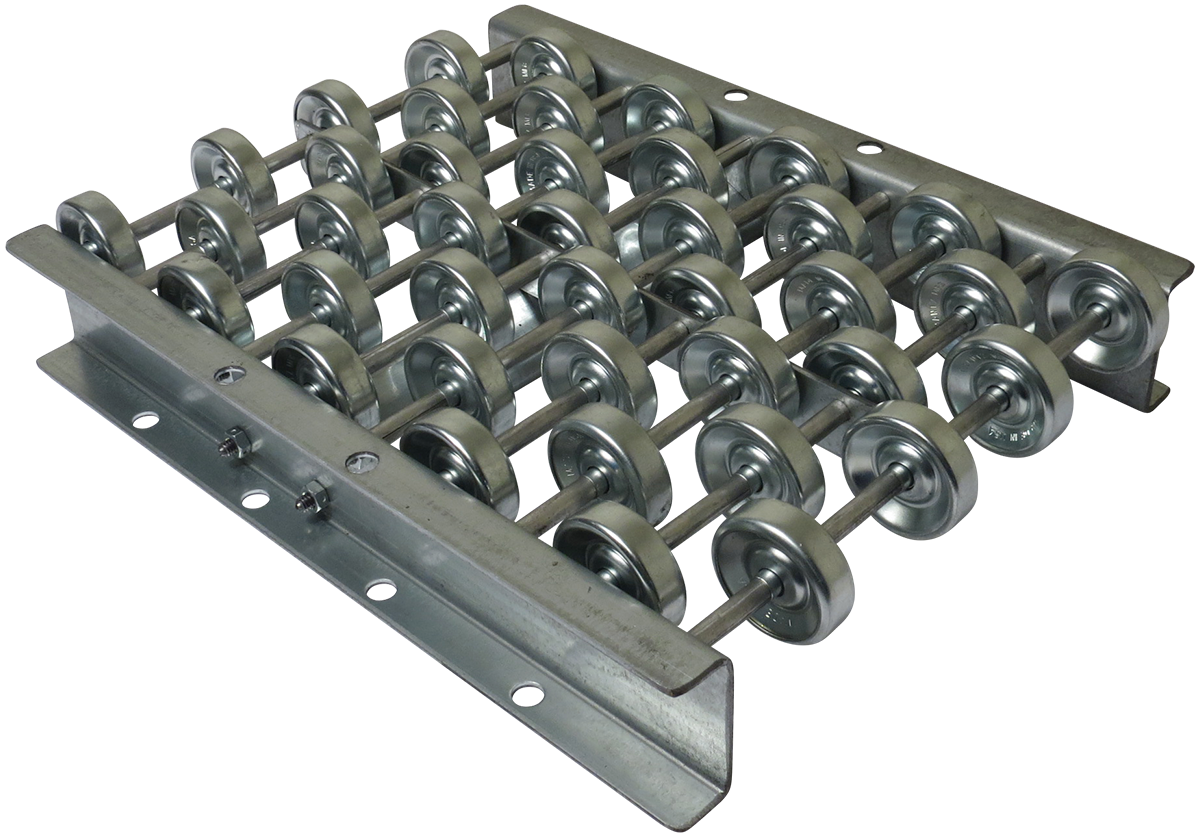

The Model 12X32 skatewheel conveyor is constructed of 2-1/2" side channels, 1-15/16" diameter wheels with a wheel density of 32 wheels per foot, and 1/4" diameter steel axles on 1.5" centers. This model has an overall width of 12" and a between frame of 10".
Refer to the Skatewheel Conveyor Selection Guide for help.
- Type: Straight
- Frame (in): 2-1/2 Galv Steel
- Length (ft): 5
- Overall Width (in): 12
- Axle Centers (in): 1.5
- Wheel: Galvanized Steel
- Wheel Capacity (lbs): 65
- Frame Capacity (lbs/ft): 36 on 10' support centers, 260 on 5' centers
- Weight (lbs): 53
- Straights (ft): 5, 10
- Curves (deg): 45, 90
- Spurs: none
- Wheels: Galv Steel, Aluminum, Black Nylon
