BTIB1004-2R
Product Model Information

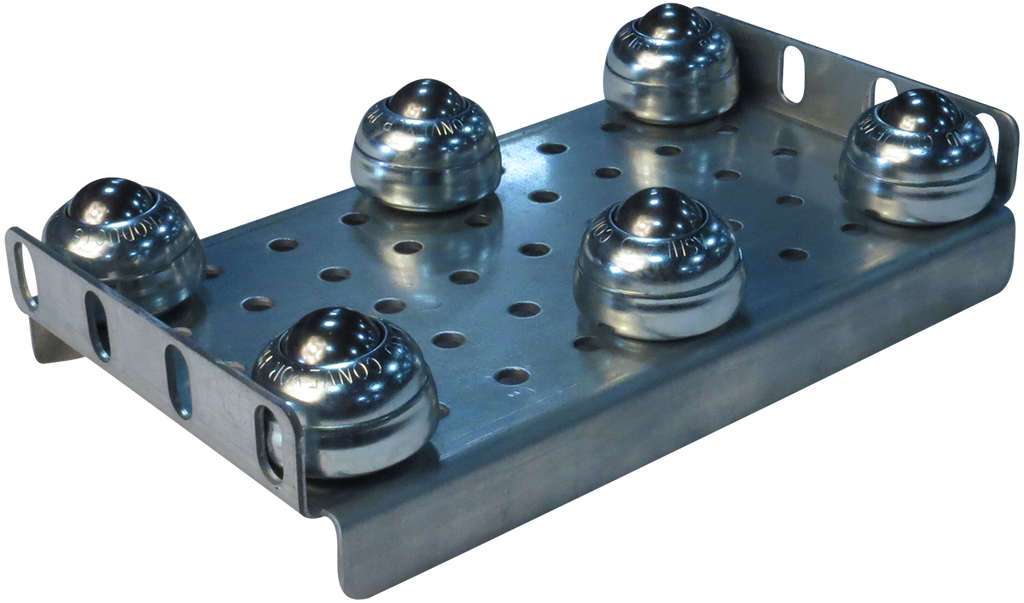

The Model BTI is a modular ball tranfser insert assembly constructed of 12 ga. galvanized. Standard ball transfers are zinc plated carbon steel with a 75 lb. capacity per ball unit." The inserts are designed to install in 7F, 8F, 9F, 10F, and 11F frames of a corresponding BF, allowing for rollers be removed and inserts installed".
Refer to the Ball Transfer Insert Selection Guide for help.
BTIB1004-2R Construction
- Between Frame (in): 10
- Width (in): 5-7/8
- Ball Rows: 2
- Ball Centers (in): 4
- Insert Capacity (lbs): 400
- Weight (lbs): 5
BTI Configurations
- Between Frame(in): 10,13,16,22,27,36
- Centers(in): 2,3,4,6
