Product Model Information

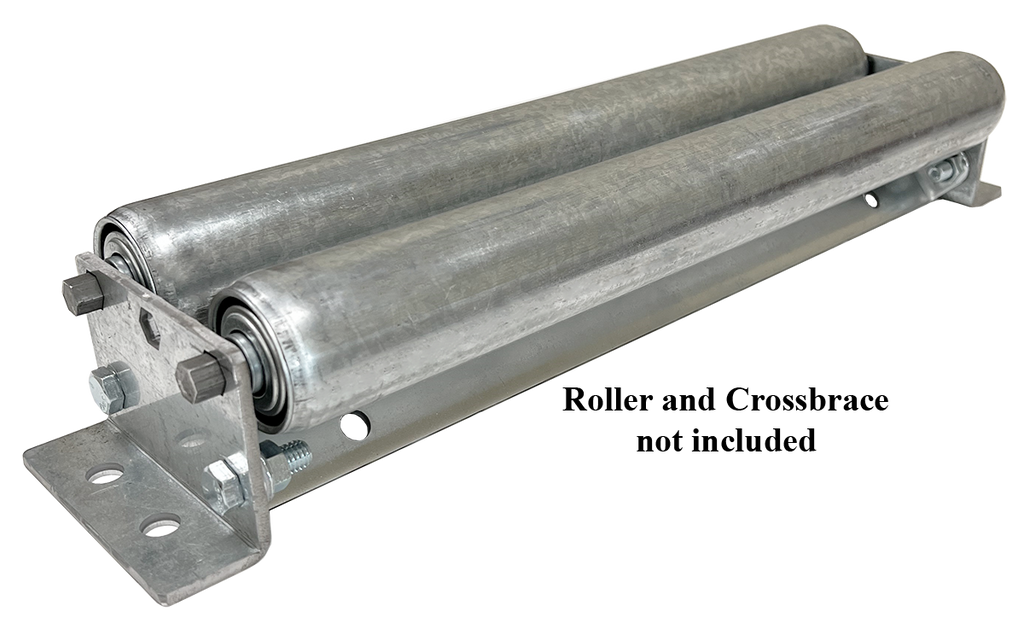

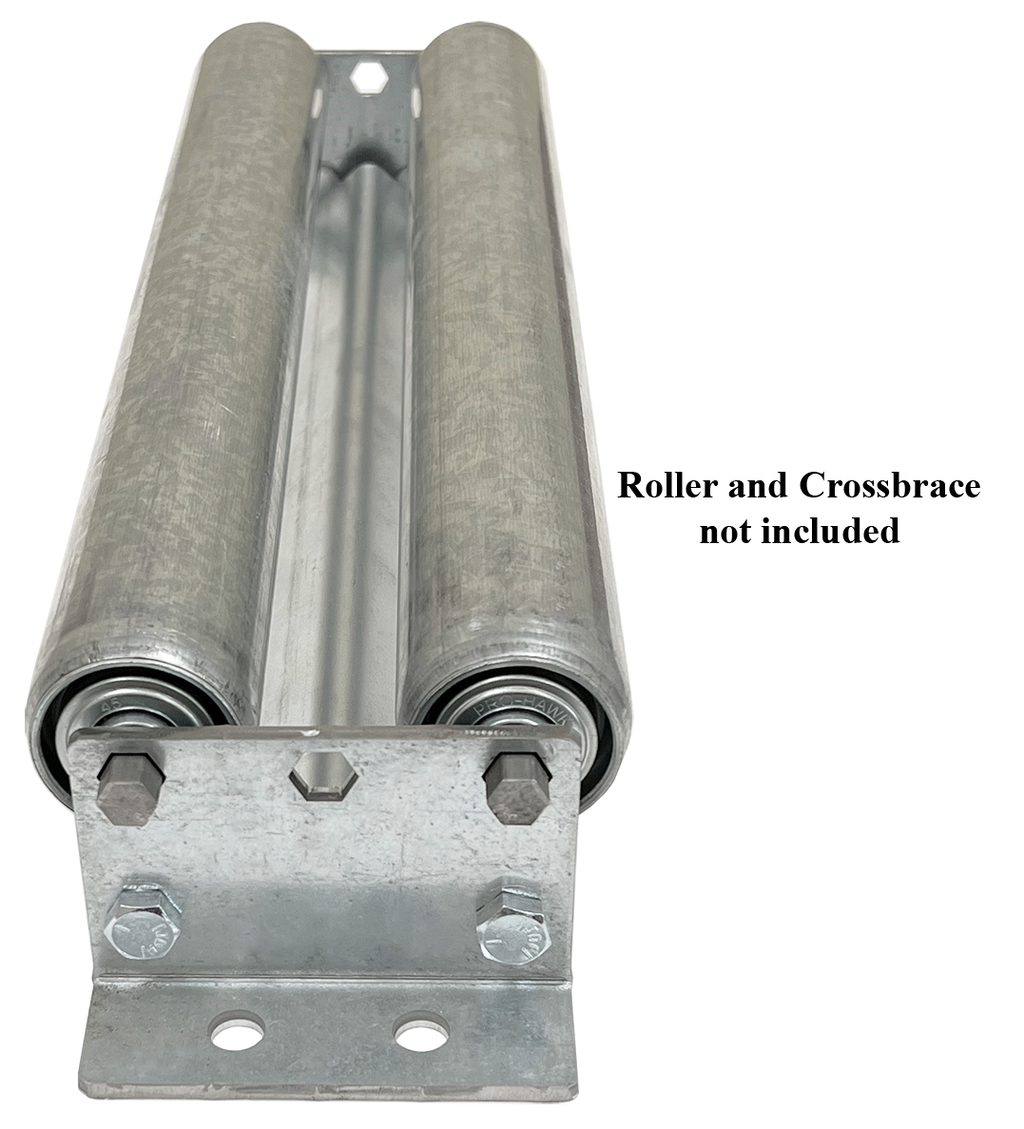

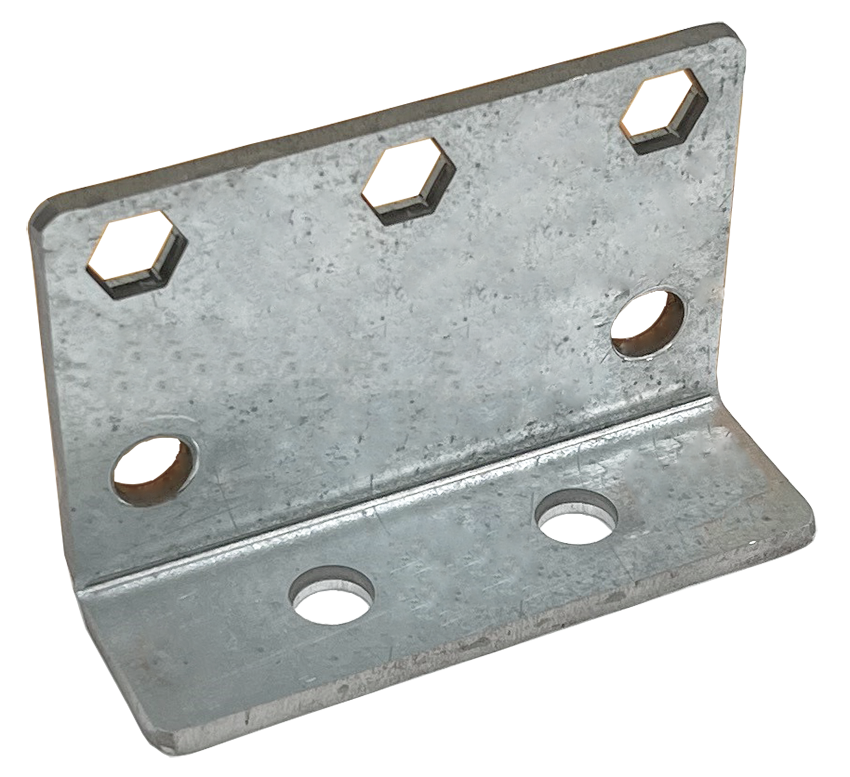

The Model LBRKT716H3H roller bracket is used for custom installation of 7/16” hex shaft rollers. The bracket is constructed of heavy duty 7 gauge galvanized steel and can accommodate 1 or 2 rollers up to 1.9” diameter. A formed crossbrace can also be attached to 2 brackets providing a rigid connected. The crossbrace BF must match the roller BF and is sold separately. This bracket is not designed to work with 2-1/2" rollers, such as the U and UG roller models.
- Material Gage: 7ga
- Roller Shaft: 7/16 Hex
- Weight (lbs): 0.73
3 HOLE ROLLER BRACKET Configurations
- Material Gage: 10ga, 7ga
- Roller Shaft: 1/4 Round, 7/16 Hex
When Can This Item Ship?
Lead times are subject to change depending on the size of your order. If we cannot meet the lead time that is listed on the website, we will contact you to discuss your order and your options.
All items in your order will ship together. The lead time for your order is determined by the items in your order with the longest lead time.
For more information about our lead times, please visit out FAQ page.
