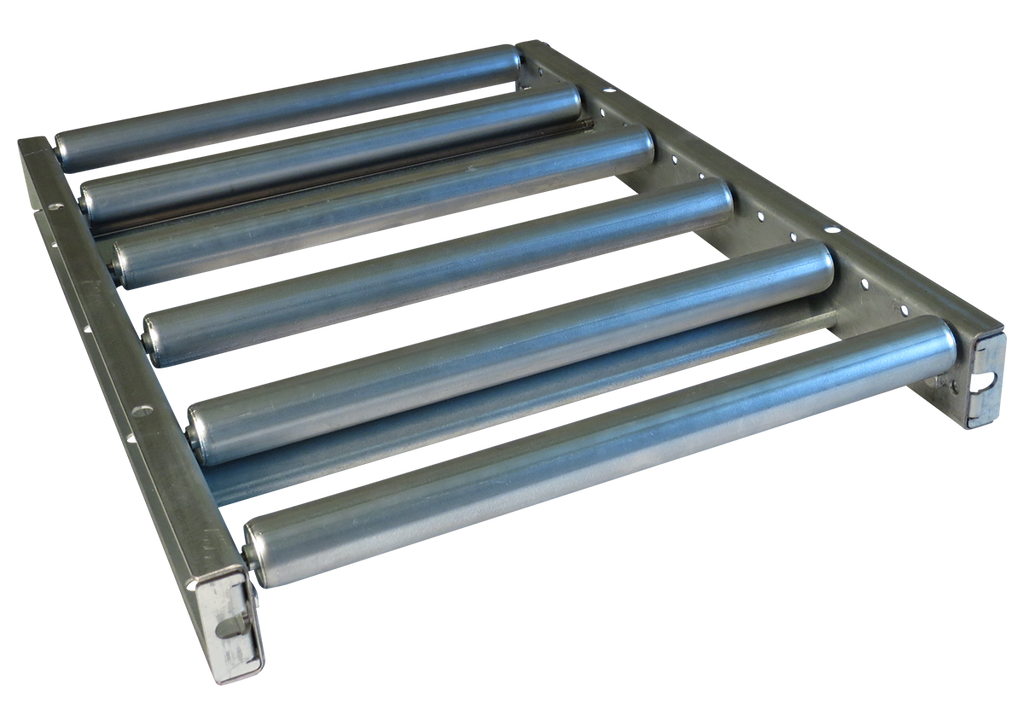

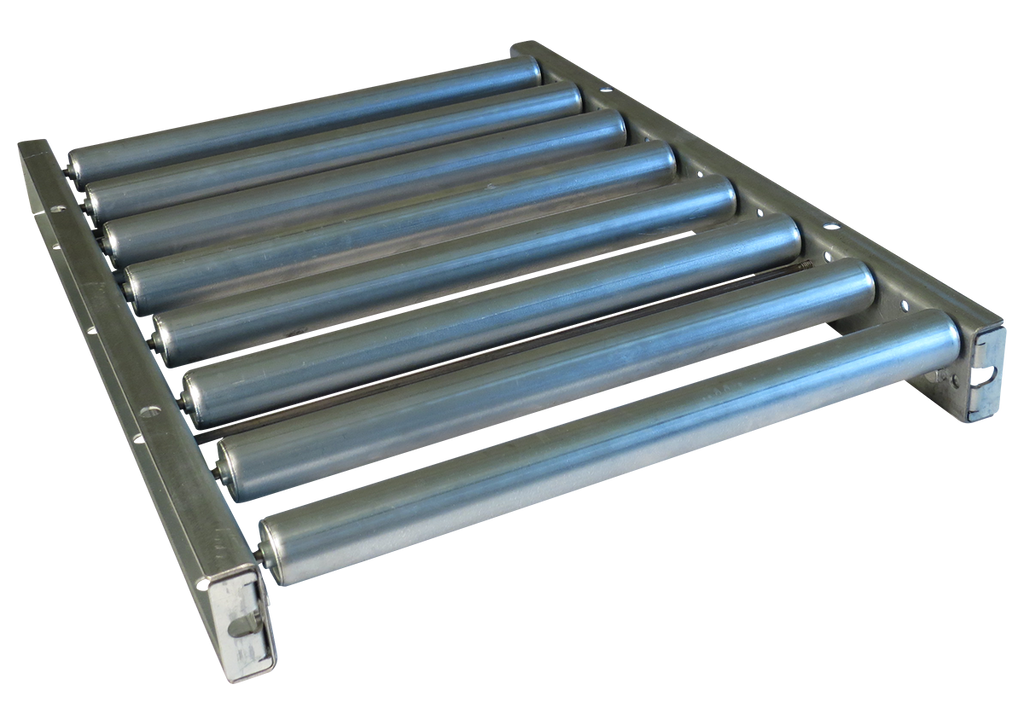

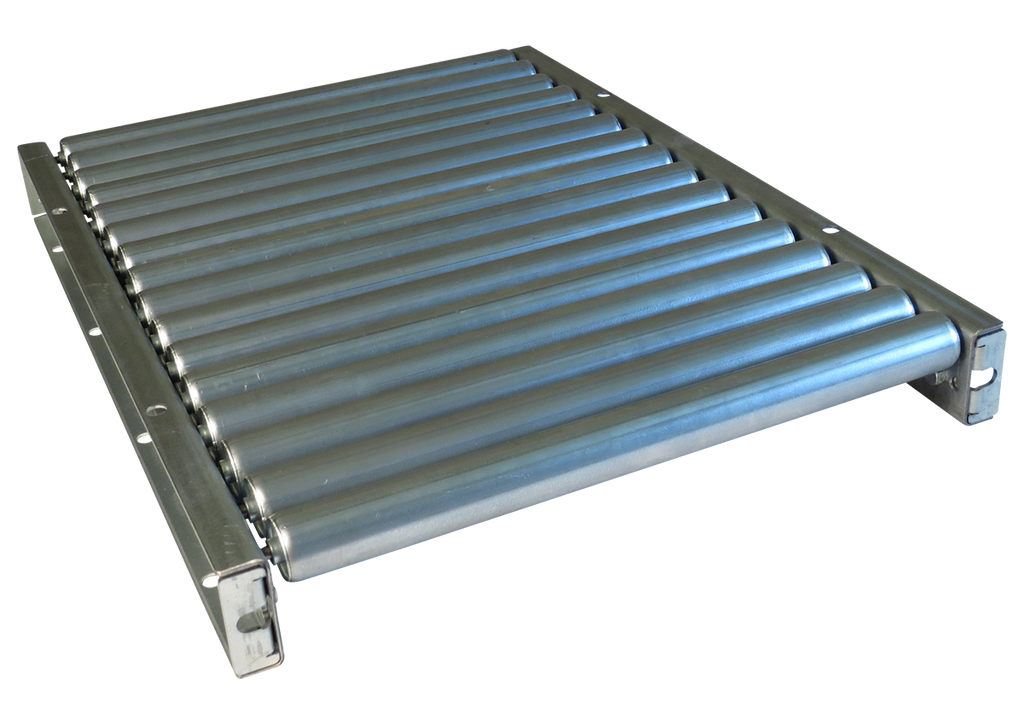

Model 11F_ _EG Roller Conveyor Product Information
The Model 11F_ _EG roller conveyor will convey light and medium loads by letting a product move on it's rollers using the force of gravity to move the load. EG rollers are compact but can conveyor loads of medium weight, making them one of if not the most popular handling systems around.
11F__EG Roller Conveyor Construction:
Roller: Model EG
Tube: 1-3/8"" O.D. x 18 ga. galvanized steel
Roller Bearing: Commercial Light Oil
Axle: 1/4" Round Plain Steel
Axle retention: Spring
Frame: 11F: 2-1/2" x 1" x 12 ga. galvanized steel channel
Coupling: Hook & stud or butt plate
Roller Capacity (lbs): 40 to 94 (dependent upon BF)
Frame Capacity (lbs/ft): 36 on 10' support centers, 260 on 5' centers
11F__EG Roller Conveyor Configuration:
Roller Centers (in): 1.5, 3, 4.5, 6
Between Frame (in): 7 to 22
Straights (ft): 5, 10
Curves (deg): 45, 90
Sleeve: none online
