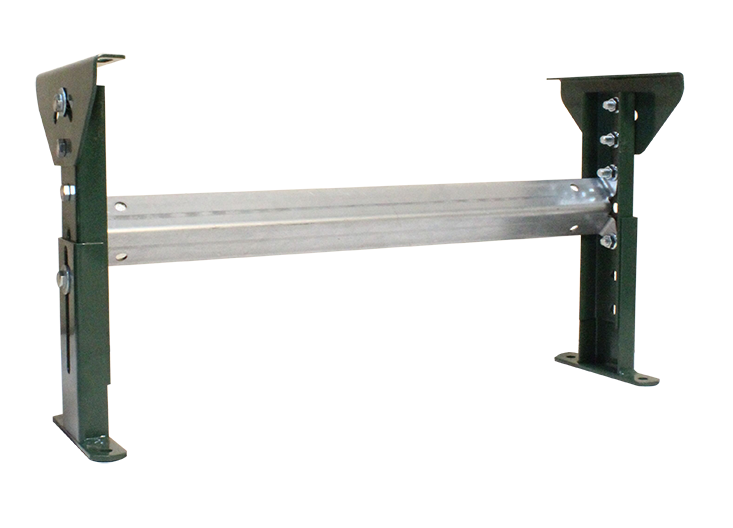

BH15 Model H-Stand Support Product Information

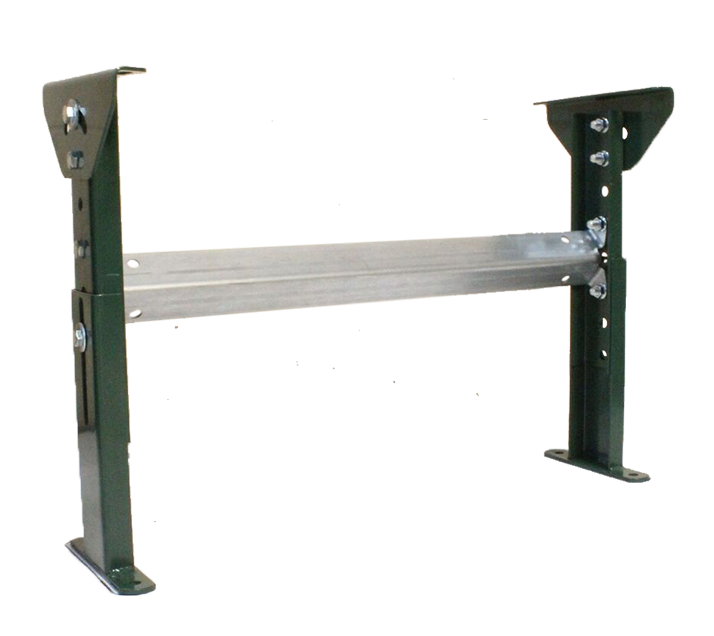

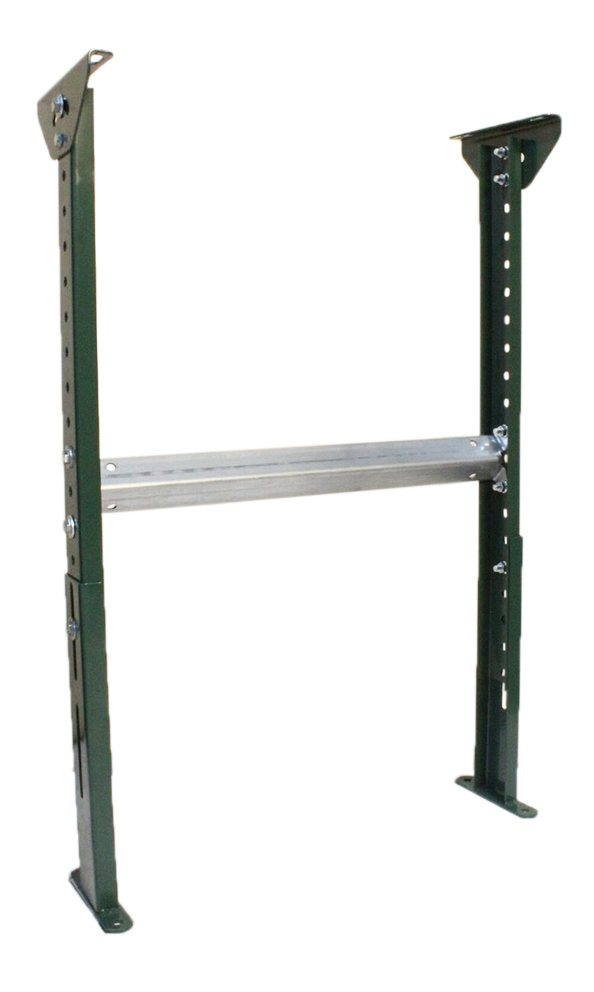

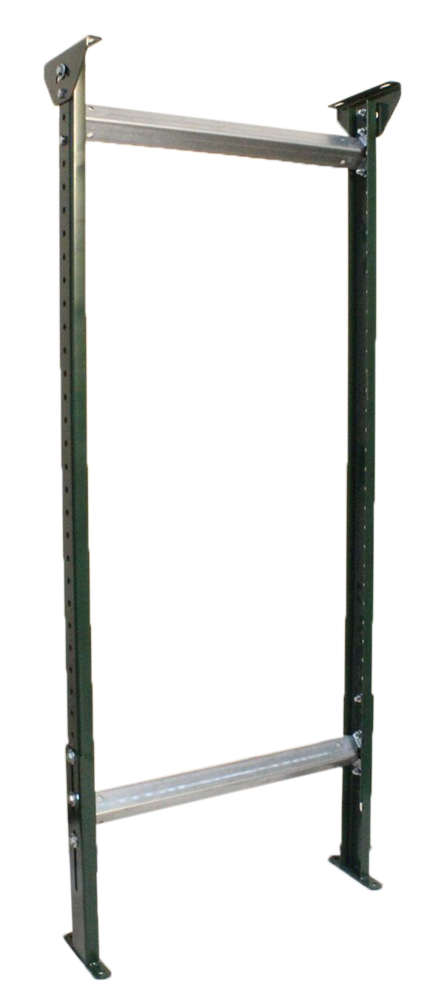

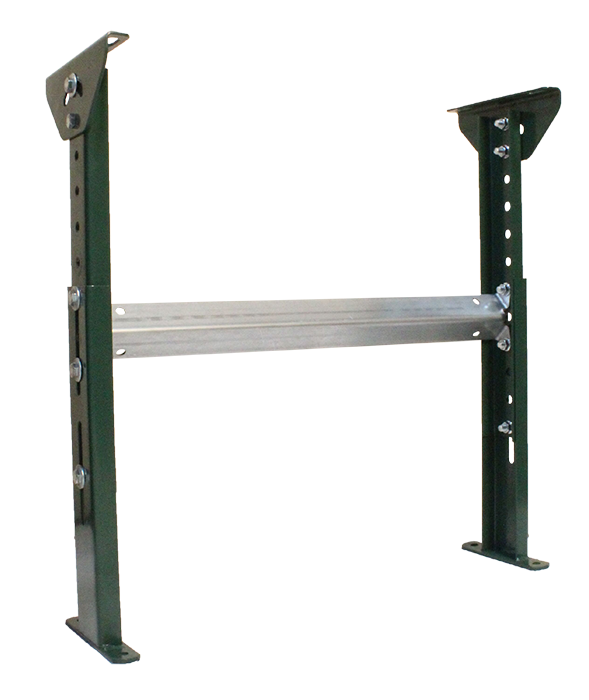

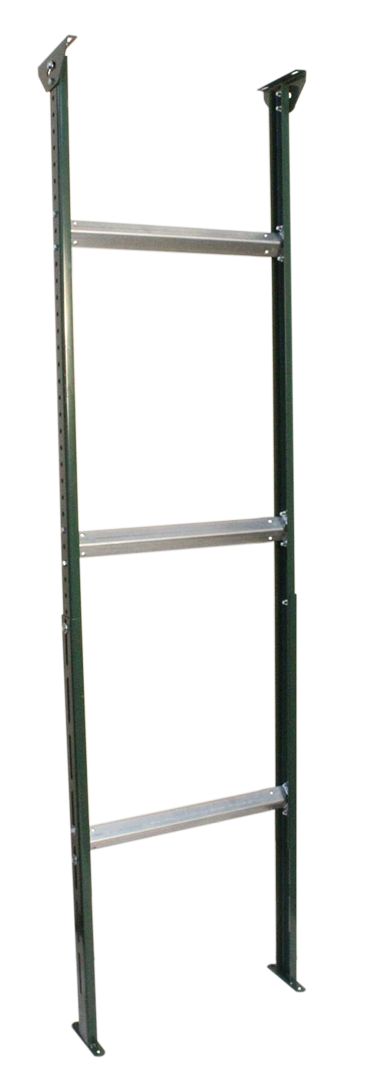

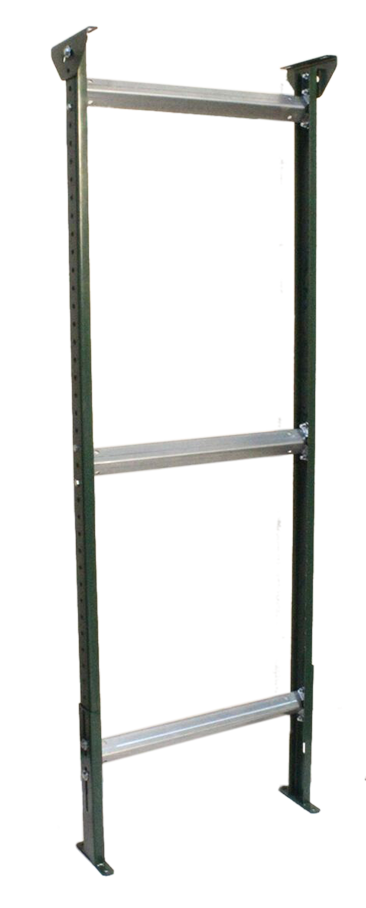

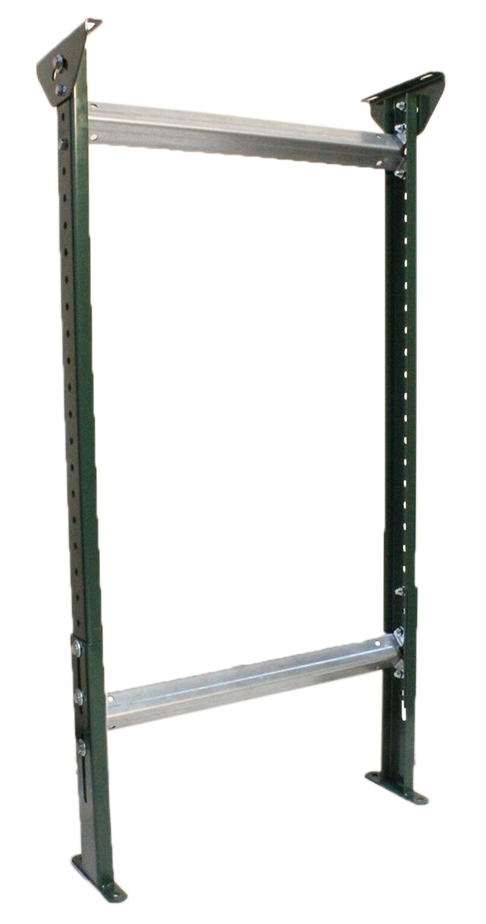

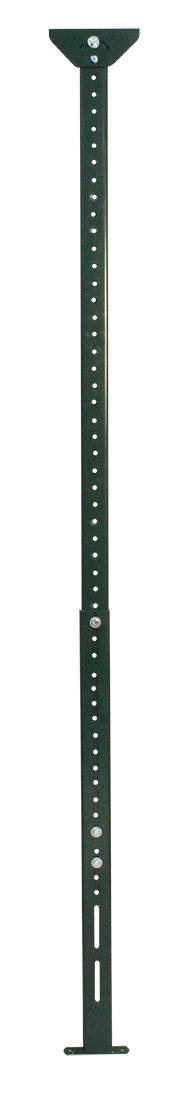

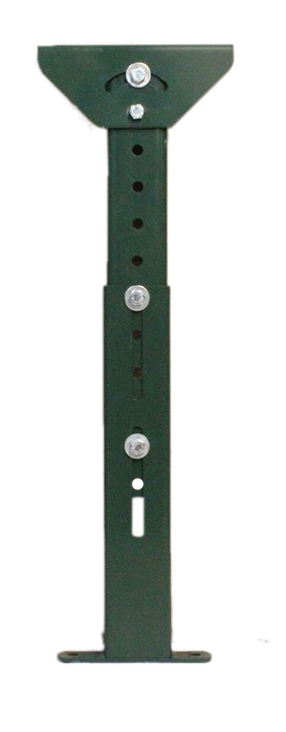

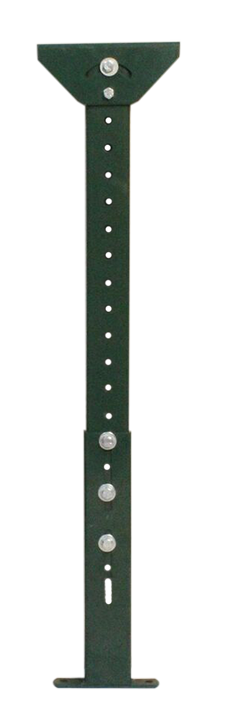

The BH15 model support is a 1,500 pound capacity Hstand which may be used with Ashland Conveyor 2-1/2" and 3-1/2" channel frames, not for use with 4" frames. The Hstand is floor mounted for permanent installations as opposed to tripods which are portable. The Upper and lower legs are constructed of 12 ga steel. Single legs are available for applications such as curves. Assembly required.
BH15 H-Stand Support Model Construction:
Between Frame (in): 7 to 51
Height Range (in): 11-1/2 to 109
No of Crossbraces: 1 to 3 (dependent on height)
Capacity (lbs): 1,500
BH15 H-Stand Support Model Configurations:
Between Frame(in): 7 to 51
Height Range (in): 11-1/2 to 109
Swivel Casters: no
