Model 5F__SG Roller Conveyor Product Information

The Model 5F__SG roller conveyor will convey medium and heavy loads by letting a product move on it's rollers using the force of gravity to move the load. 5F__SG rollers are heavy-duty and can conveyor heavy loads, making them one of if not the most popular handling systems around.



5F__SG Roller Conveyor Construction:

Roller: Model SG
Tube: 2-1/2"x11ga Galv Stl tubing
Axle: 11/16" Hex Plain Stl
Roller Bearing: Commercial Light Oil
Axle retention: Spring Retained
Frame: 4"x5.4# Painted Steel side channels
Coupling: Butt Plate
Roller Capacity (lbs): 587 to 850
Frame Capacity (lbs/ft): 300 on 10' support centers, 1,550 on 5' centers



5F__SG Roller Conveyor Configurations:

Roller Centers (in): 3, 4.5, 6
Between Frame (in): 10 to 51
Straights (ft): 5, 10

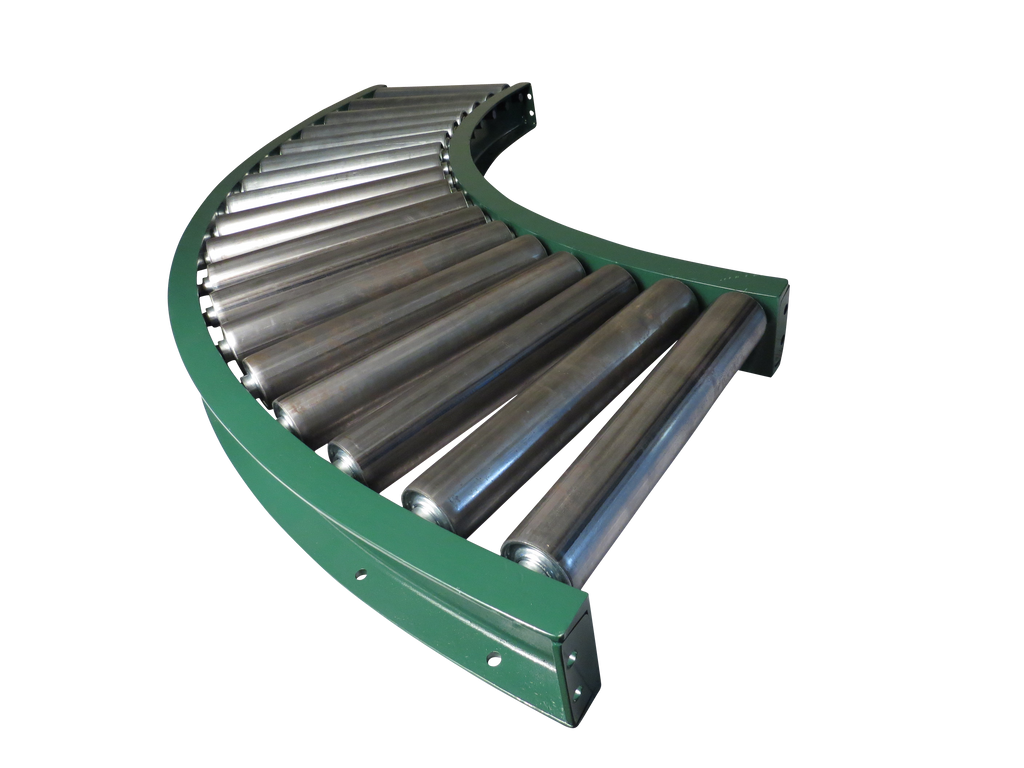

Curves (deg): 45, 90
Sleeve: none online

Model 5F__SG Roller Conveyor Product Information
FILTERS
608 results
Roller Conveyor 5F90SG03B36BP

5F90SG03B36BP

Roller Conveyor 5F90SG03B33BP

5F90SG03B33BP

Roller Conveyor 5F90SG03B31BP

5F90SG03B31BP

Roller Conveyor 5F90SG03B27BP

5F90SG03B27BP

Roller Conveyor 5F90SG03B25BP

5F90SG03B25BP

Roller Conveyor 5F90SG03B23BP

5F90SG03B23BP

Roller Conveyor 5F90SG03B22BP

5F90SG03B22BP

Roller Conveyor 5F90SG03B21BP

5F90SG03B21BP

Roller Conveyor 5F90SG03B19BP

5F90SG03B19BP

Roller Conveyor 5F90SG03B17BP

5F90SG03B17BP

Roller Conveyor 5F90SG03B16BP

5F90SG03B16BP

Roller Conveyor 5F90SG03B15BP

5F90SG03B15BP

Roller Conveyor 5F90SG03B13BP

5F90SG03B13BP

Roller Conveyor 5F90SG03B10BP

5F90SG03B10BP

Roller Conveyor 5F90S03B51BP

5F90S03B51BP

Roller Conveyor 5F90S03B47BP

5F90S03B47BP

Roller Conveyor 5F90S03B43BP

5F90S03B43BP

Roller Conveyor 5F90S03B39BP

5F90S03B39BP

Roller Conveyor 5F90S03B36BP

5F90S03B36BP

Roller Conveyor 5F90S03B33BP

5F90S03B33BP

Roller Conveyor 5F90S03B31BP

5F90S03B31BP

Roller Conveyor 5F90S03B27BP

5F90S03B27BP

Roller Conveyor 5F90S03B25BP

5F90S03B25BP

Roller Conveyor 5F90S03B23BP

5F90S03B23BP

Roller Conveyor 5F90S03B22BP

5F90S03B22BP

Roller Conveyor 5F90S03B21BP

5F90S03B21BP

Roller Conveyor 5F90S03B19BP

5F90S03B19BP

Roller Conveyor 5F90S03B17BP

5F90S03B17BP

Roller Conveyor 5F90S03B16BP

5F90S03B16BP

Roller Conveyor 5F90S03B15BP

5F90S03B15BP

Roller Conveyor 5F90S03B13BP

5F90S03B13BP

Roller Conveyor 5F90S03B10BP

5F90S03B10BP

Roller Conveyor 5F45T03B51BP

5F45T03B51BP

Roller Conveyor 5F45T03B47BP

5F45T03B47BP

Roller Conveyor 5F45T03B43BP

5F45T03B43BP

Roller Conveyor 5F45T03B39BP

5F45T03B39BP
