10F10CGAB03B07BP
i LEAD TIME: 7 working days
$967.60
Product Model Information

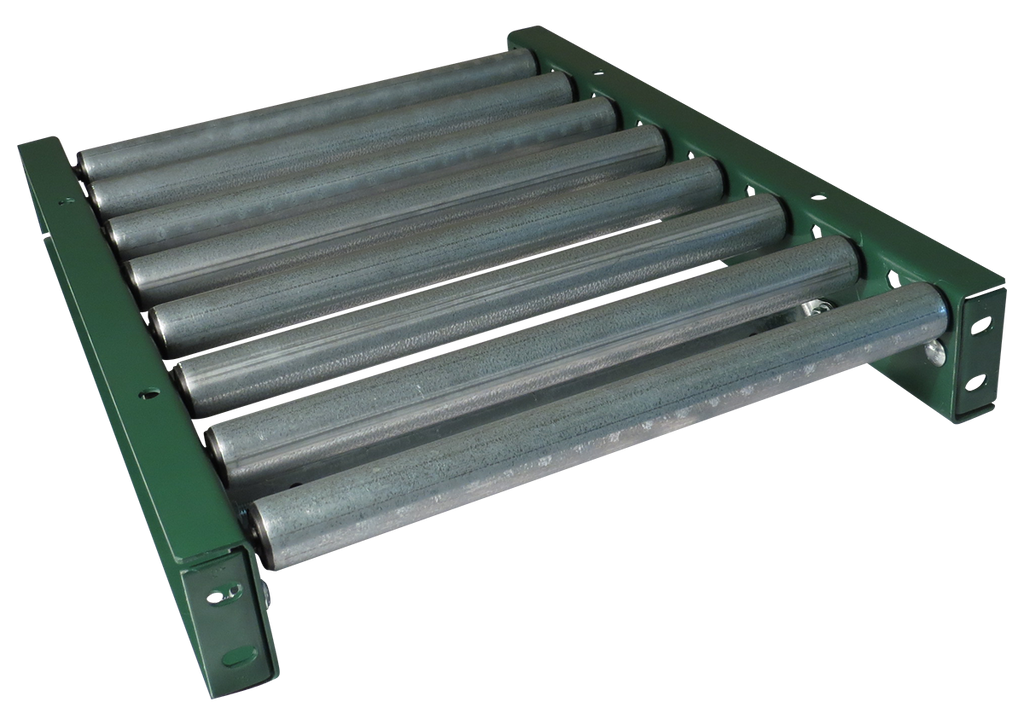

The Model 10F_ _CG roller conveyor is constructed of 3-1/2" Painted Steel side channels, 1-3/8"x16ga Galv Stl tubing, 7/16" Hex Plain Stl roller shaft, and Butt Plate couplers.
Refer to the Roller Conveyor Selection Guide for help.
10F10CGAB03B07BP Construction
- Type: Straight
- Length (ft): 10
- Between Frame (in): 7
- Roller Centers (in): 3
- Roller Bearing: Precision Abec
- Sleeve: none
- Roller Capacity (lbs): 677
- Frame Capacity (lbs/ft): 120 on 10' support centers, 600 on 5' centers
- Weight (lbs): 186.7
10F_ _CG Configurations
- Roller Centers (in): 1.5, 3, 4.5, 6
- Straights (ft): 5, 10
- Curves (deg): 45, 90
- Sleeve: none
