10F10UG06B13BP

i LEAD TIME: 7 working days
$539.70

Product Model Information

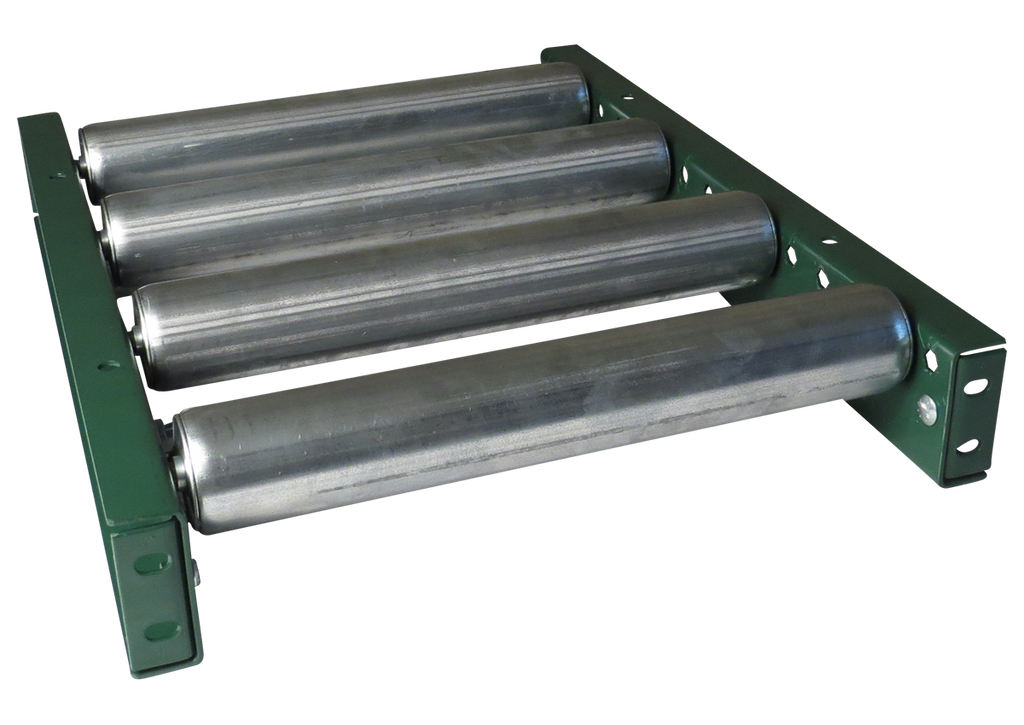

The Model 10F_ _UG roller conveyor is constructed of 3-1/2" Painted Steel side channels, 2-1/2"x14ga Galv Stl tubing, 7/16" Hex Plain Stl roller shaft, and Butt Plate couplers.

Refer to the Roller Conveyor Selection Guide for help.

10F10UG06B13BP Construction

  • Type: Straight
  • Length (ft): 10
  • Between Frame (in): 13
  • Roller Centers (in): 6
  • Roller Bearing: Commercial Light Oil
  • Sleeve: none
  • Roller Capacity (lbs): 496
  • Frame Capacity (lbs/ft): 120 on 10' support centers, 600 on 5' centers
  • Weight (lbs): 217.6

10F_ _UG Configurations

  • Roller Centers (in): 3, 4.5, 6
  • Straights (ft): 5, 10
  • Curves (deg): 45, 90
  • Sleeve: none
