10F90KGPU03B16BP
i LEAD TIME: 10 working days
$1,214.00
Product Model Information

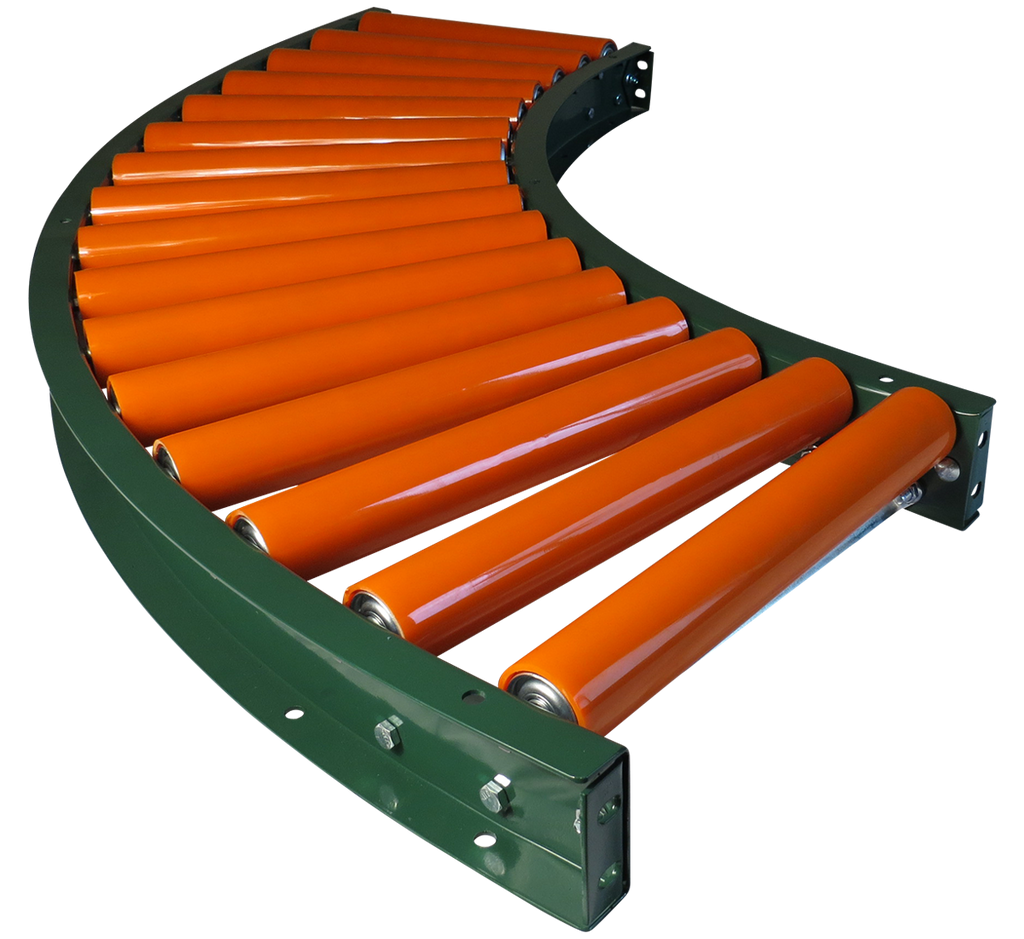

The Model 10F_ _KG roller conveyor is constructed of 3-1/2" Painted Steel side channels, 1.9"x16ga Galv Stl tubing, 7/16" Hex Plain Stl roller shaft, and Butt Plate couplers.
Refer to the Roller Conveyor Selection Guide for help.
10F90KGPU03B16BP Construction
- Type: Curve
- Angle (deg): 90
- Inner Radius (in): 30
- Between Frame (in): 16
- Roller Centers (in): 3
- Roller Bearing: Commercial Light Oil
- Sleeve: Orange Polyurethane
- Roller Capacity (lbs): 270
- Frame Capacity (lbs/ft): 120 on 10' support centers, 600 on 5' centers
- Weight (lbs): 133.7
10F_ _KG Configurations
- Roller Centers (in): 3, 4.5, 6
- Straights (ft): 5, 10
- Curves (deg): 45, 90
- Sleeve: 1/8 Orange Polyurethane
