10F90KSPU03B36BP

i LEAD TIME: 10 working days
$6,257.30

Product Model Information

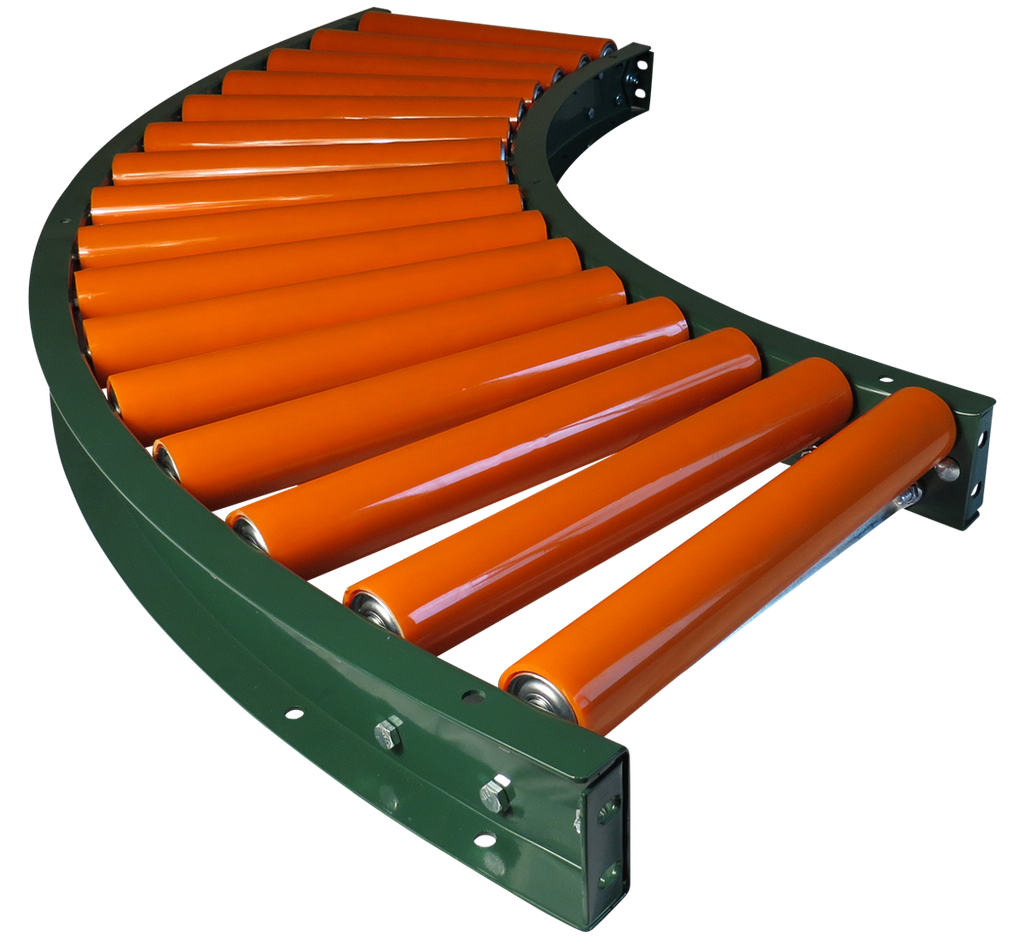

The Model 10F_ _KS roller conveyor is constructed of 3-1/2" Painted Steel side channels, 1.9"x16ga St Stl tubing, 7/16" Hex St Stl roller shaft, and Butt Plate couplers.

Refer to the Roller Conveyor Selection Guide for help.

10F90KSPU03B36BP Construction

  • Type: Curve
  • Angle (deg): 90
  • Inner Radius (in): 30
  • Between Frame (in): 36
  • Roller Centers (in): 3
  • Roller Bearing: Commercial Light Oil
  • Sleeve: Orange Polyurethane
  • Roller Capacity (lbs): 260
  • Frame Capacity (lbs/ft): 120 on 10' support centers, 600 on 5' centers
  • Weight (lbs): 211.8

10F_ _KS Configurations

  • Roller Centers (in): 3, 4.5, 6
  • Straights (ft): 5, 10
  • Curves (deg): 45, 90
  • Sleeve: 1/8 Orange Polyurethane
