10FR4G10003

i LEAD TIME: 3 working days
$141.00

Product Model Information

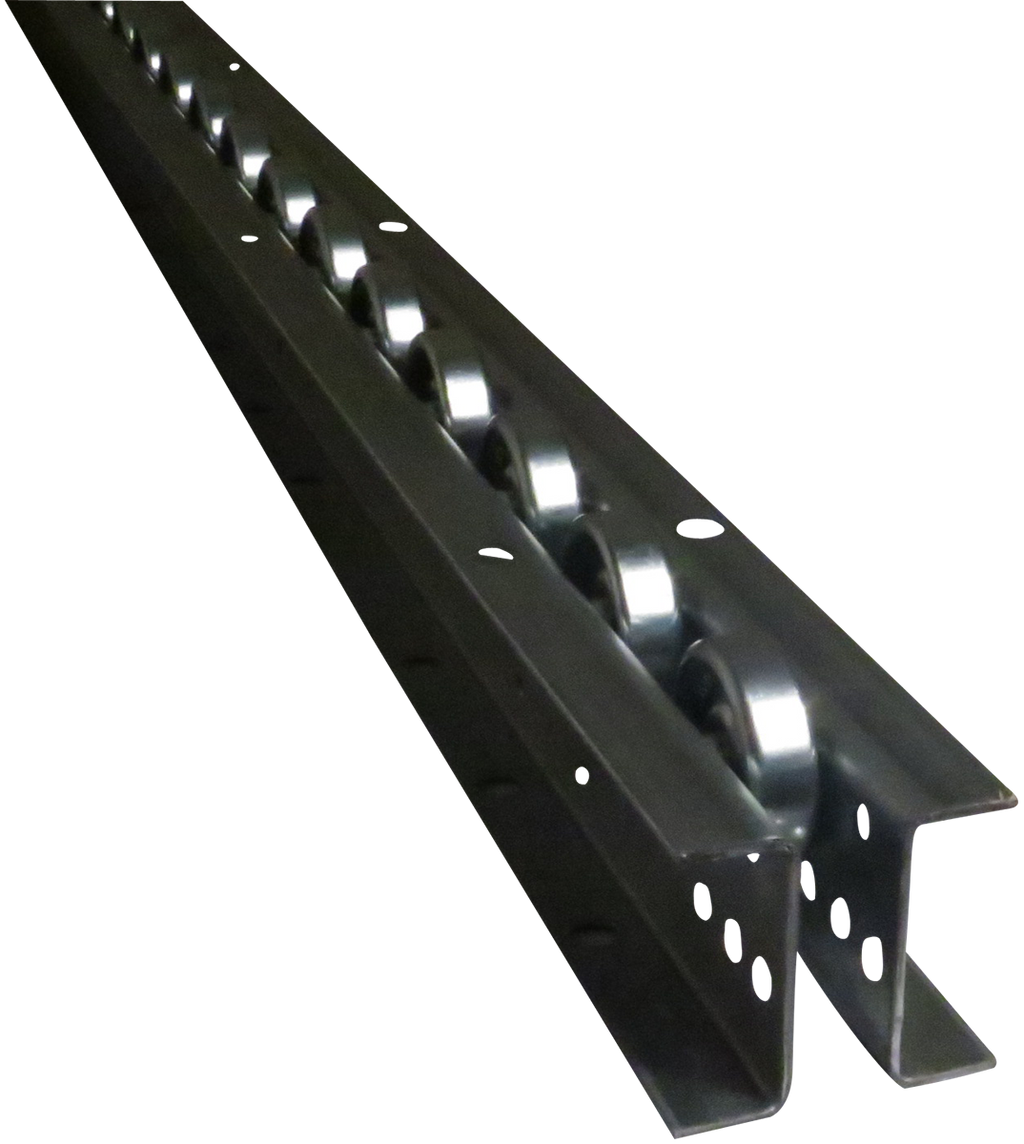

The Model FR4 flow rail is constructed of 2-1/2" galvanized steel channel. The wheels are 1-15/16" diameter and 13/16" wide.

Refer to the Flow Rail Selection Guide for help.

Construction

  • Type: Wheel
  • Rail: 1"x2-1/2" Galv Stl Chnl
  • Length (ft): 10
  • Centers (in): 3
  • Wheels Per Foot: 4
  • Rolling Surface: Steel
  • Wheel Capacity (lbs): 100
  • Flow Rail Capacity (lbs/ft): 36 on 10' support centers, 240 on 5' centers
  • Weight (lbs): 43

FR4 Configurations

  • Lengths (ft): 5, 10
  • Centers (in): 1.5, 3
