11F10EG45B21BP

i LEAD TIME: 7 working days
$395.10

Product Model Information

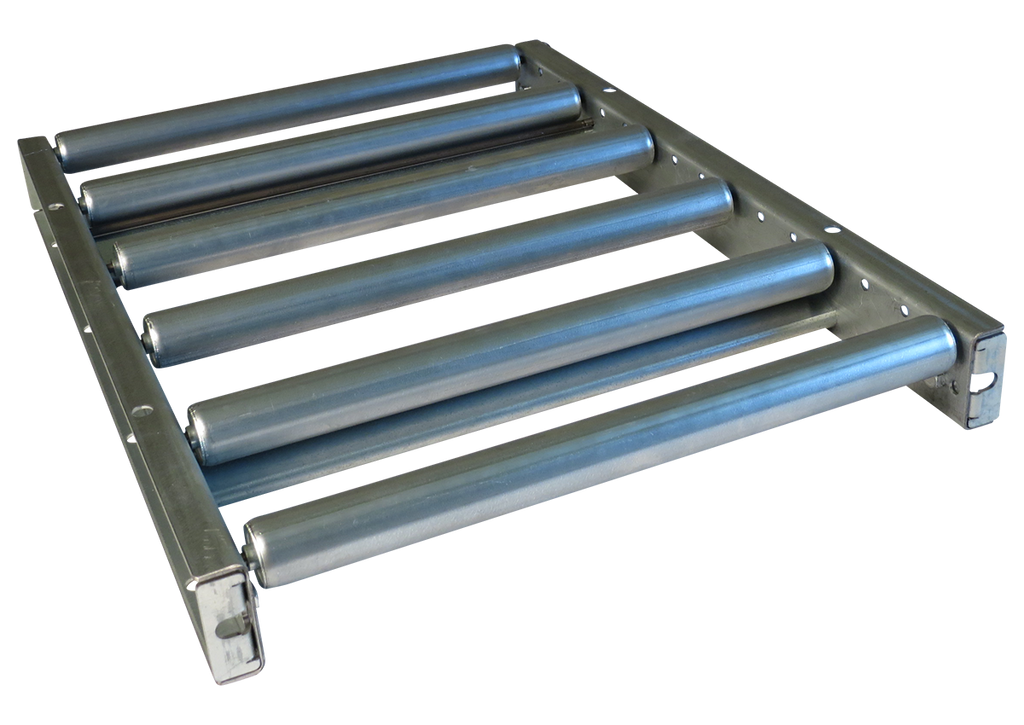

The Model 11F_ _EG roller conveyor is constructed of 2-1/2" Galv Steel side channels, 1-3/8"x18ga Galv Stl tubing, 1/4" Round Plain Stl roller shaft, and Butt Plate couplers.

Refer to the Roller Conveyor Selection Guide for help.

11F10EG45B21BP Construction

  • Type: Straight
  • Length (ft): 10
  • Between Frame (in): 21
  • Roller Centers (in): 4.5
  • Roller Bearing: Commercial Light Oil
  • Sleeve: none
  • Roller Capacity (lbs): 42
  • Frame Capacity (lbs/ft): 36 on 10' support centers, 260 on 5' centers
  • Weight (lbs): 62.8

11F_ _EG Configurations

  • Roller Centers (in): 1.5, 3, 4.5, 6
  • Straights (ft): 5, 10
  • Curves (deg): 45, 90
  • Sleeve: none
