11F45EG15B22HR

i LEAD TIME: 7 working days
$542.10

Product Model Information

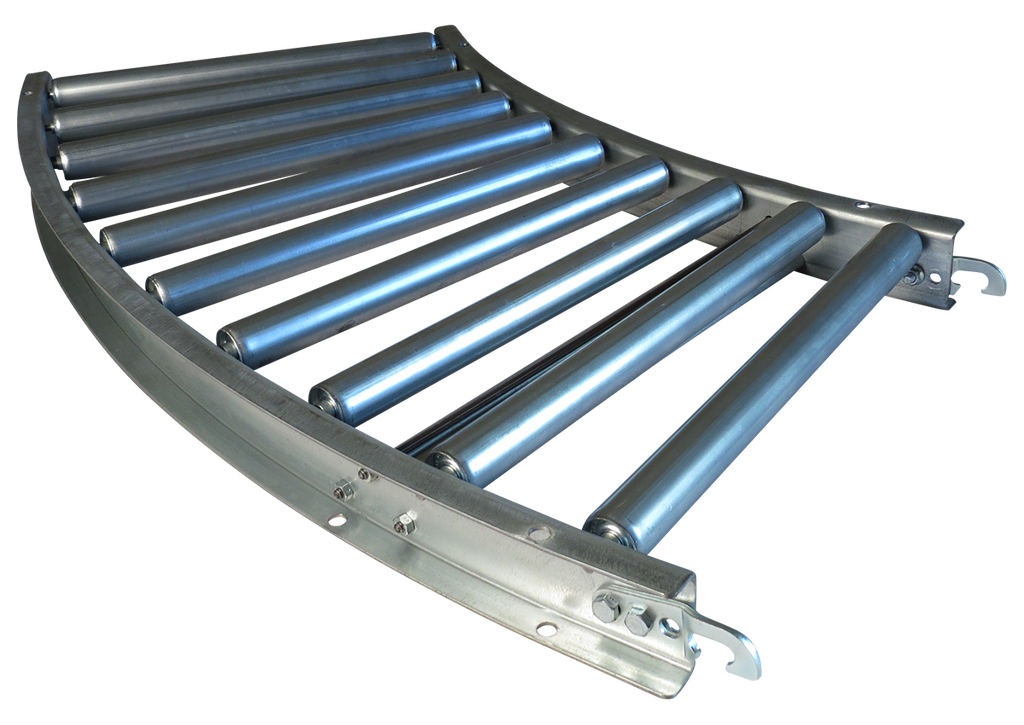

The Model 11F_ _EG roller conveyor is constructed of 2-1/2" Galv Steel side channels, 1-3/8"x18ga Galv Stl tubing, 1/4" Round Plain Stl roller shaft, and Hook & Stud couplers.

Refer to the Roller Conveyor Selection Guide for help.

11F45EG15B22HR Construction

  • Type: Curve
  • Angle (deg): 45
  • Inner Radius (in): 36
  • Between Frame (in): 22
  • Roller Centers (in): 1.5
  • Roller Bearing: Commercial Light Oil
  • Sleeve: none
  • Roller Capacity (lbs): 40
  • Frame Capacity (lbs/ft): 36 on 10' support centers, 260 on 5' centers
  • Weight (lbs): 42.1

11F_ _EG Configurations

  • Roller Centers (in): 1.5, 3, 4.5, 6
  • Straights (ft): 5, 10
  • Curves (deg): 45, 90
  • Sleeve: none
