12F45EA03B22HR

i LEAD TIME: 10 working days
$373.70

Product Model Information

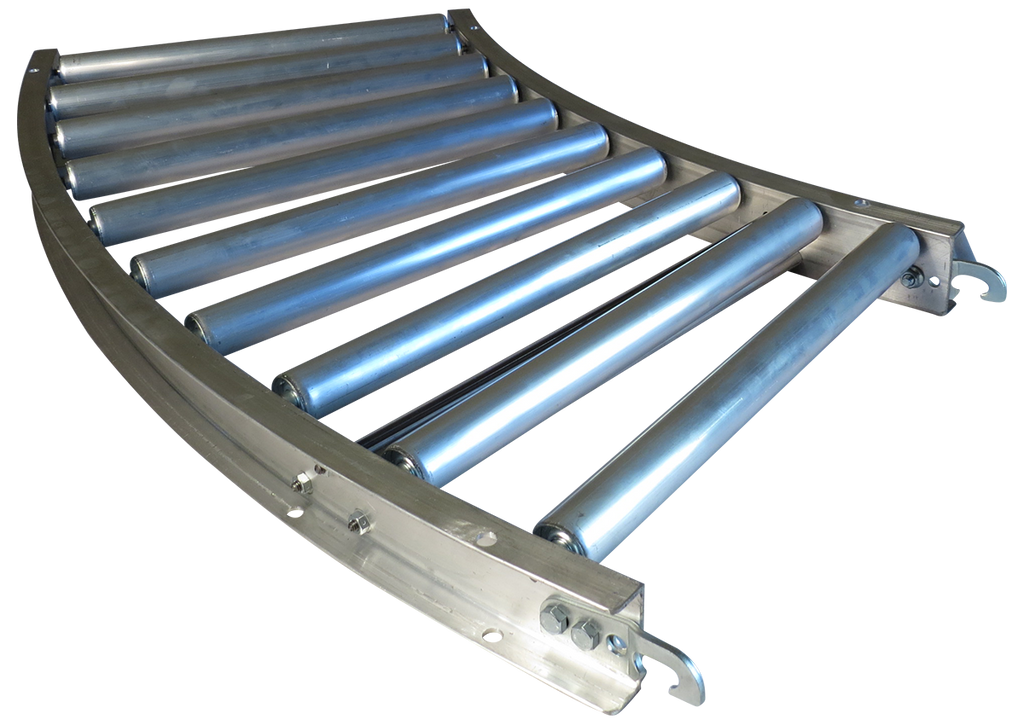

The Model 12F_ _EA roller conveyor is constructed of 2-1/2" Alum side channels, 1-3/8"x18ga Alum tubing, 1/4" Round Plain Stl roller shaft, and Hook & Stud couplers.

Refer to the Roller Conveyor Selection Guide for help.

12F45EA03B22HR Construction

  • Type: Curve
  • Angle (deg): 45
  • Inner Radius (in): 36
  • Between Frame (in): 22
  • Roller Centers (in): 3
  • Roller Bearing: Commercial Light Oil
  • Sleeve: none
  • Roller Capacity (lbs): 40
  • Frame Capacity (lbs/ft): 16 on 10' support centers, 120 on 5' centers
  • Weight (lbs): 14.5

12F_ _EA Configurations

  • Roller Centers (in): 1.5, 3, 4.5, 6
  • Straights (ft): 5, 10
  • Curves (deg): 45, 90
  • Sleeve: none
