12X12GX90GCSL

i LEAD TIME: 15 working days
$345.00

Product Model Information

The Model 12X12 skatewheel conveyor is constructed of 2-1/2" side channels, 1-15/16" diameter wheels with a wheel density of 12 wheels per foot, and 1/4" diameter steel axles on 3" centers. This model has an overall width of 12" and a between frame of 10".

Refer to the Skatewheel Conveyor Selection Guide for help.

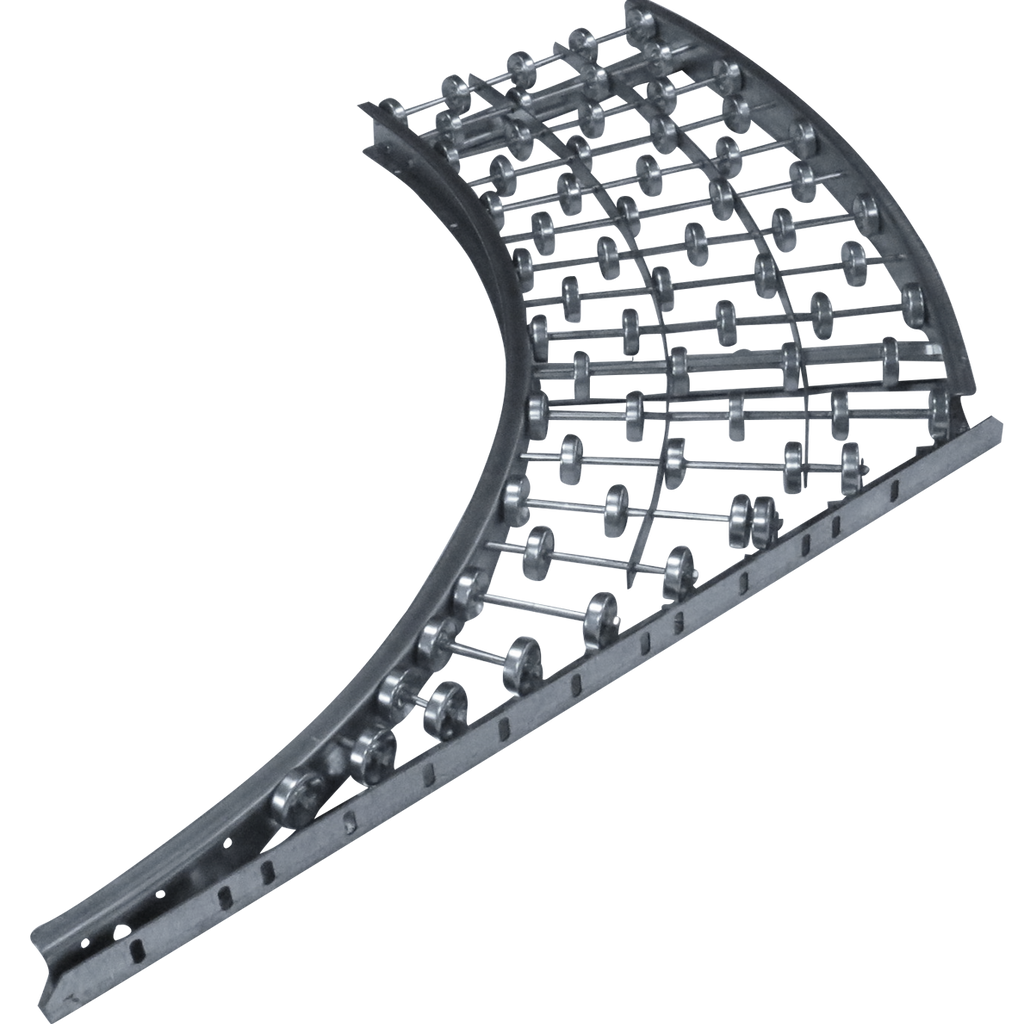

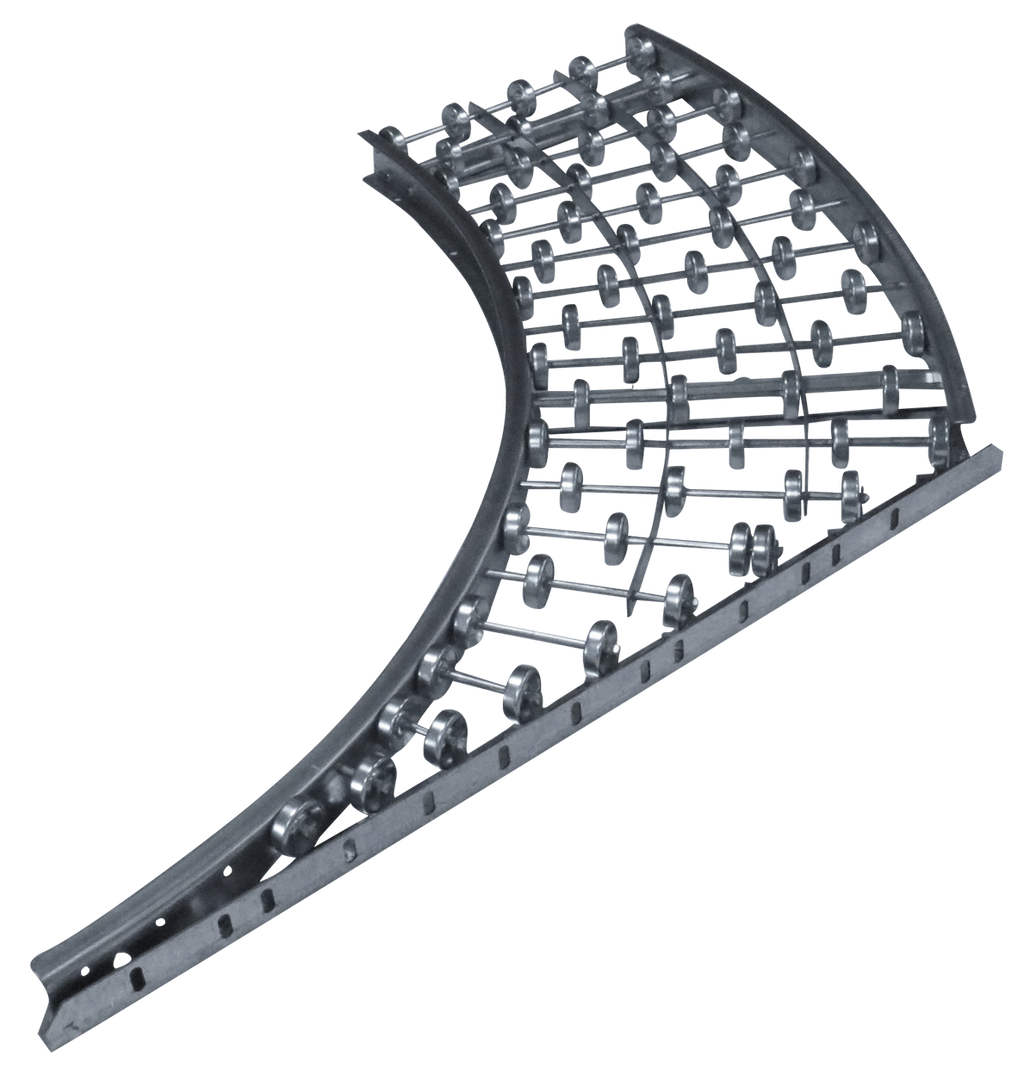

12X12GX90GCSL Construction

  • Type: Curve Spur
  • Frame (in): 2-1/2 Galv Steel
  • Angle (deg): 90
  • Overall Width (in): 12
  • Axle Centers (in): 3
  • Wheel: Galvanized Steel
  • Wheel Capacity (lbs): 65
  • Frame Capacity (lbs/ft): 36 on 10' support centers, 260 on 5' centers
  • Weight (lbs): 29

12X12 Configurations

  • Straights (ft): 5, 10
  • Curves (deg): 45, 90
  • Spurs: Straight 30/45 Deg, Curve 90 Deg
  • Wheels: Galv Steel
