Product Model Information

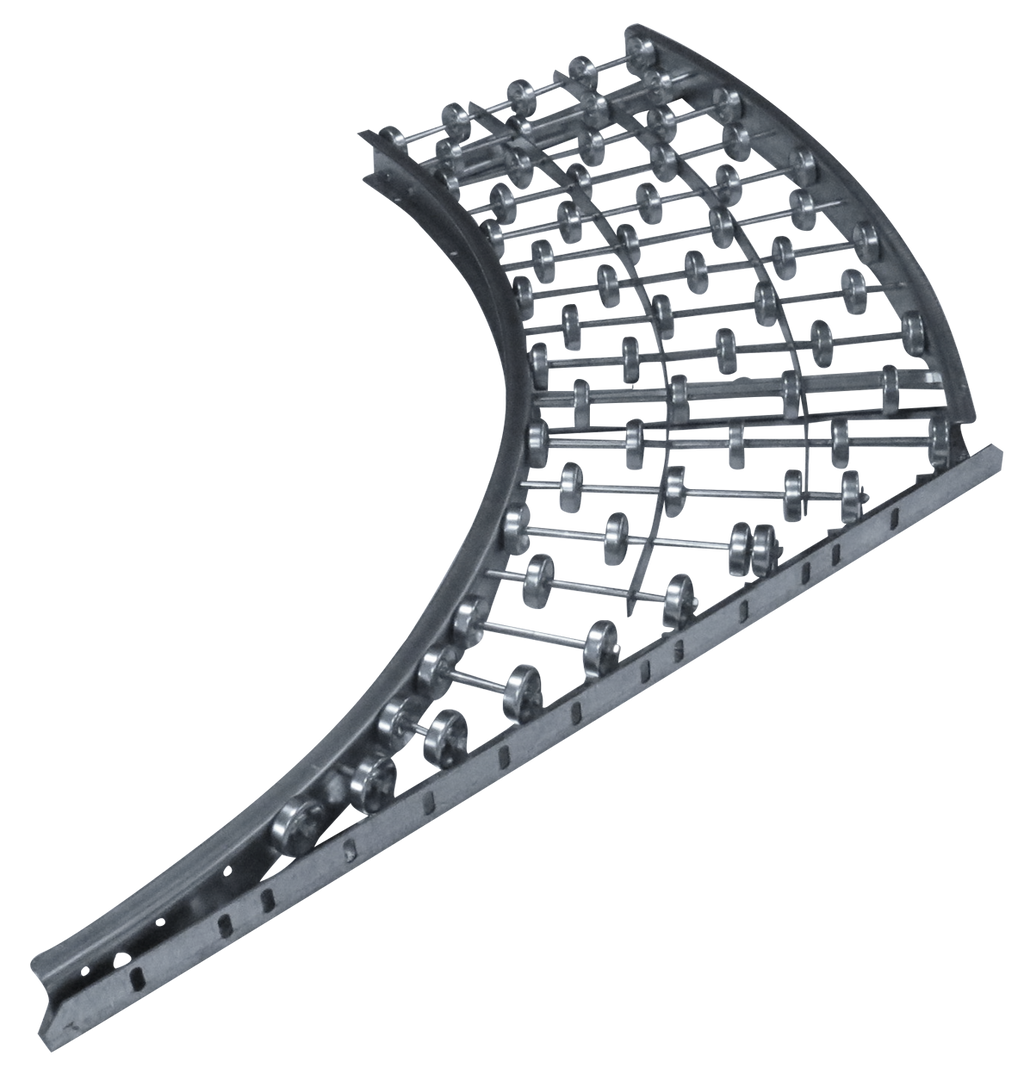

The Model 12X12 skatewheel conveyor is constructed of 2-1/2" side channels, 1-15/16" diameter wheels with a wheel density of 12 wheels per foot, and 1/4" diameter steel axles on 3" centers. This model has an overall width of 12" and a between frame of 10".
Refer to the Skatewheel Conveyor Selection Guide for help.
- Type: Curve Spur
- Frame (in): 2-1/2 Galv Steel
- Angle (deg): 90
- Overall Width (in): 12
- Axle Centers (in): 3
- Wheel: Galvanized Steel
- Wheel Capacity (lbs): 65
- Frame Capacity (lbs/ft): 36 on 10' support centers, 260 on 5' centers
- Weight (lbs): 29
- Straights (ft): 5, 10
- Curves (deg): 45, 90
- Spurs: Straight 30/45 Deg, Curve 90 Deg
- Wheels: Galv Steel
