14F05S03B04BPPR

i LEAD TIME: 7 working days
$744.10

Product Model Information

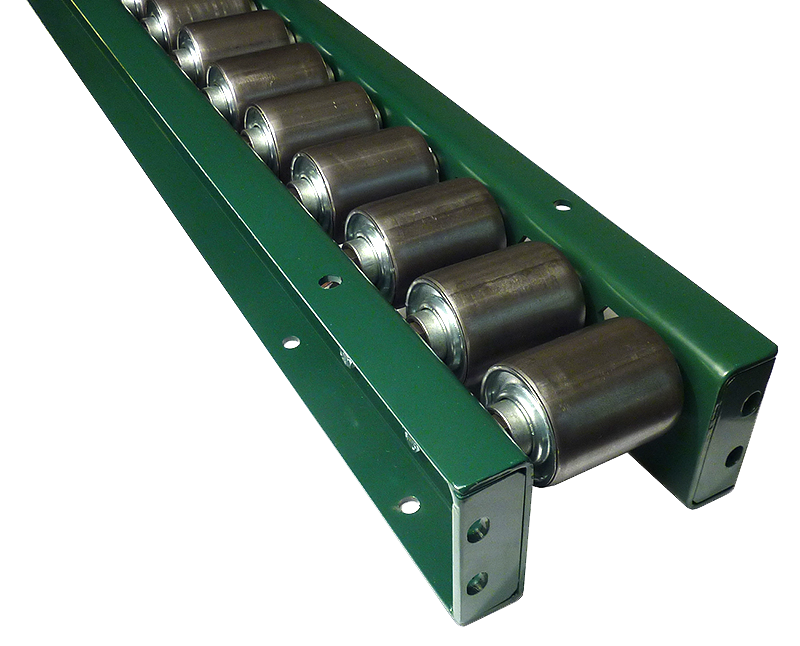

The Model 14F_ _S roller conveyor is constructed of 4"x7ga Painted Steel side channels, 2-1/2"x11ga Plain Stl tubing, 11/16" Hex Plain Stl Pin Retained roller shaft, and Butt Plate couplers.

Refer to the Roller Conveyor Selection Guide for help.

14F05S03B04BPPR Construction

  • Type: Straight
  • Length (ft): 5
  • Between Frame (in): 4
  • Roller Centers (in): 3
  • Roller Bearing: Commercial Light Oil
  • Sleeve: none
  • Roller Capacity (lbs): 850
  • Frame Capacity (lbs/ft): 230 on 10' support centers, 1,050 on 5' centers
  • Weight (lbs): 120.9

14F_ _S Configurations

  • Roller Centers (in):
  • Straights (ft): 5, 10
  • Curves (deg): none
  • Sleeve: none
