14F05SG06B19BP

i LEAD TIME: 7 working days
$515.00

Product Model Information

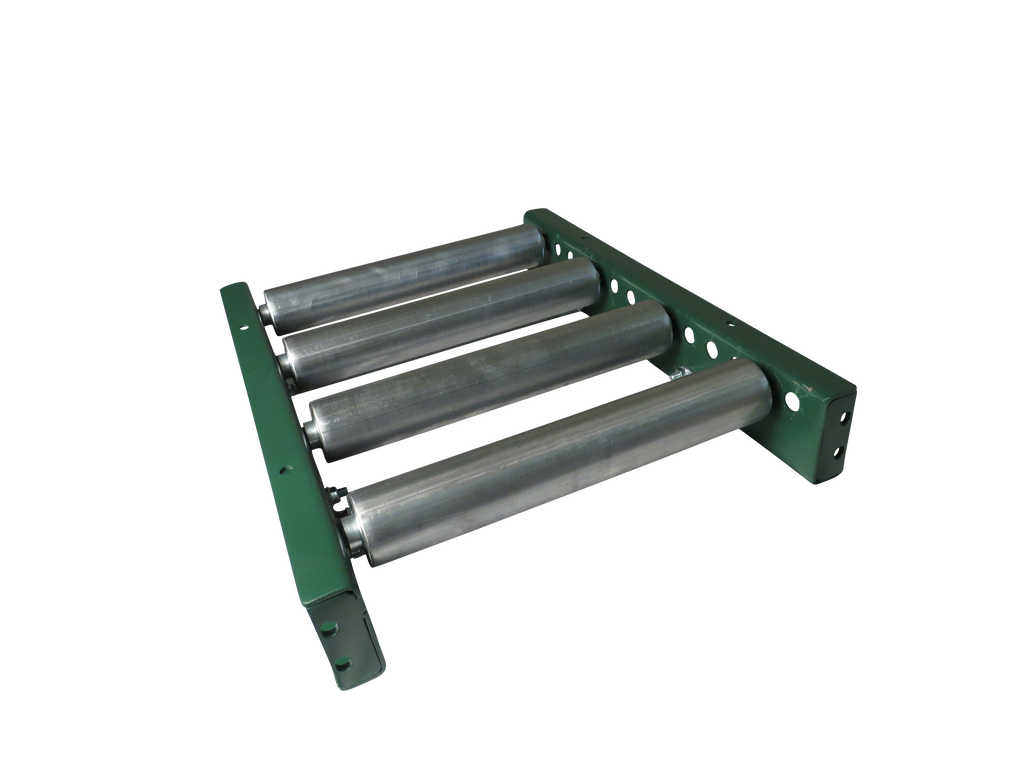

The Model 14F_ _SG roller conveyor is constructed of 4"x7ga Painted Steel side channels, 2-1/2"x11ga Galv Stl tubing, 11/16" Hex Plain Stl roller shaft, and Butt Plate couplers.

Refer to the Roller Conveyor Selection Guide for help.

14F05SG06B19BP Construction

  • Type: Straight
  • Length (ft): 5
  • Between Frame (in): 19
  • Roller Centers (in): 6
  • Roller Bearing: Commercial Light Oil
  • Sleeve: none
  • Roller Capacity (lbs): 850
  • Frame Capacity (lbs/ft): 230 on 10' support centers, 1,050 on 5' centers
  • Weight (lbs): 155.5

14F_ _SG Configurations

  • Roller Centers (in): 3, 4.5, 6
  • Straights (ft): 5, 10
  • Curves (deg): 45, 90
  • Sleeve: none
