14F10S03B04BPPR
i LEAD TIME: 7 working days
$1,294.30
Product Model Information

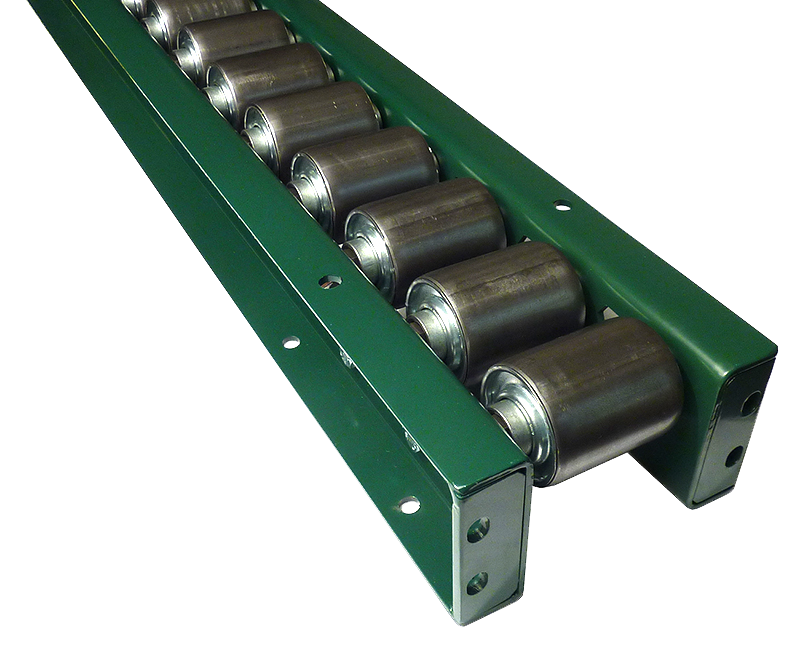

The Model 14F_ _S roller conveyor is constructed of 4"x7ga Painted Steel side channels, 2-1/2"x11ga Plain Stl tubing, 11/16" Hex Plain Stl Pin Retained roller shaft, and Butt Plate couplers.
Refer to the Roller Conveyor Selection Guide for help.
14F10S03B04BPPR Construction
- Type: Straight
- Length (ft): 10
- Between Frame (in): 4
- Roller Centers (in): 3
- Roller Bearing: Commercial Light Oil
- Sleeve: none
- Roller Capacity (lbs): 850
- Frame Capacity (lbs/ft): 230 on 10' support centers, 1,050 on 5' centers
- Weight (lbs): 241.4
14F_ _S Configurations
- Roller Centers (in):
- Straights (ft): 5, 10
- Curves (deg): none
- Sleeve: none
