14F10SGPU06B43BP
i LEAD TIME: 7 working days
$2,735.70
Product Model Information

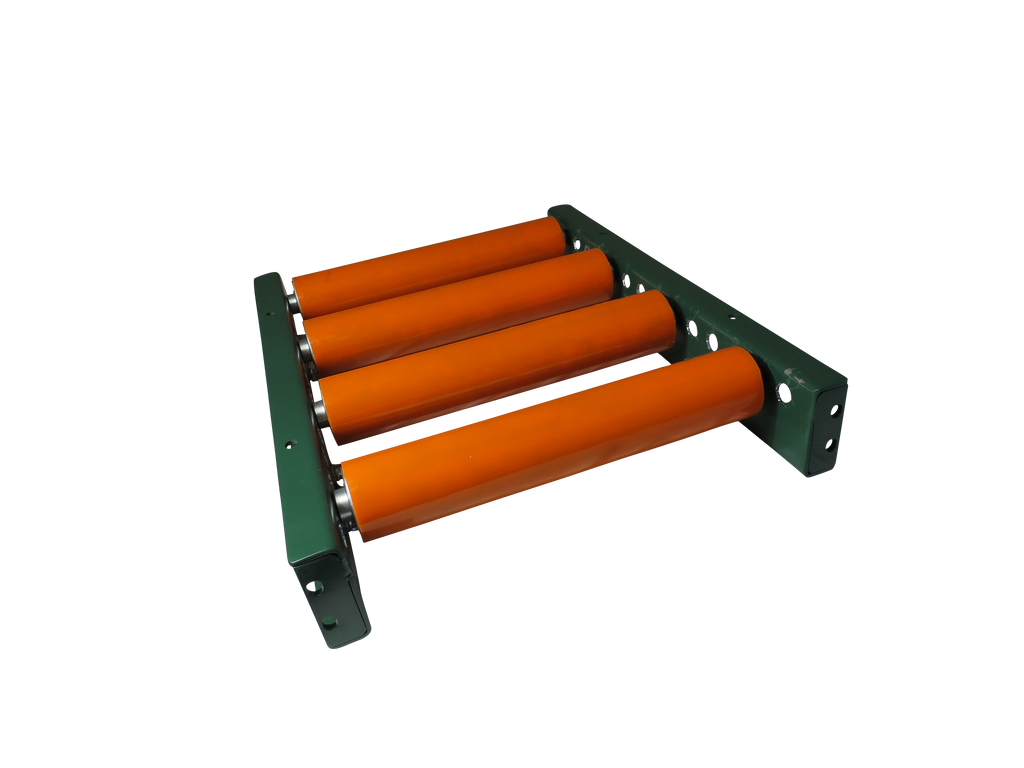

The Model 14F_ _SG roller conveyor is constructed of 4"x7ga Painted Steel side channels, 2-1/2"x11ga Galv Stl tubing, 11/16" Hex Plain Stl roller shaft, and Butt Plate couplers.
Refer to the Roller Conveyor Selection Guide for help.
14F10SGPU06B43BP Construction
- Type: Straight
- Length (ft): 10
- Between Frame (in): 43
- Roller Centers (in): 6
- Roller Bearing: Commercial Light Oil
- Sleeve: Orange Polyurethane
- Roller Capacity (lbs): 702
- Frame Capacity (lbs/ft): 230 on 10' support centers, 1,050 on 5' centers
- Weight (lbs): 542
14F_ _SG Configurations
- Roller Centers (in): 3, 4.5, 6
- Straights (ft): 5, 10
- Curves (deg): 45, 90
- Sleeve: 1/8 Orange Polyurethane
