14F90SG03B37BP
i LEAD TIME: 12 working days
$1,534.90
Product Model Information

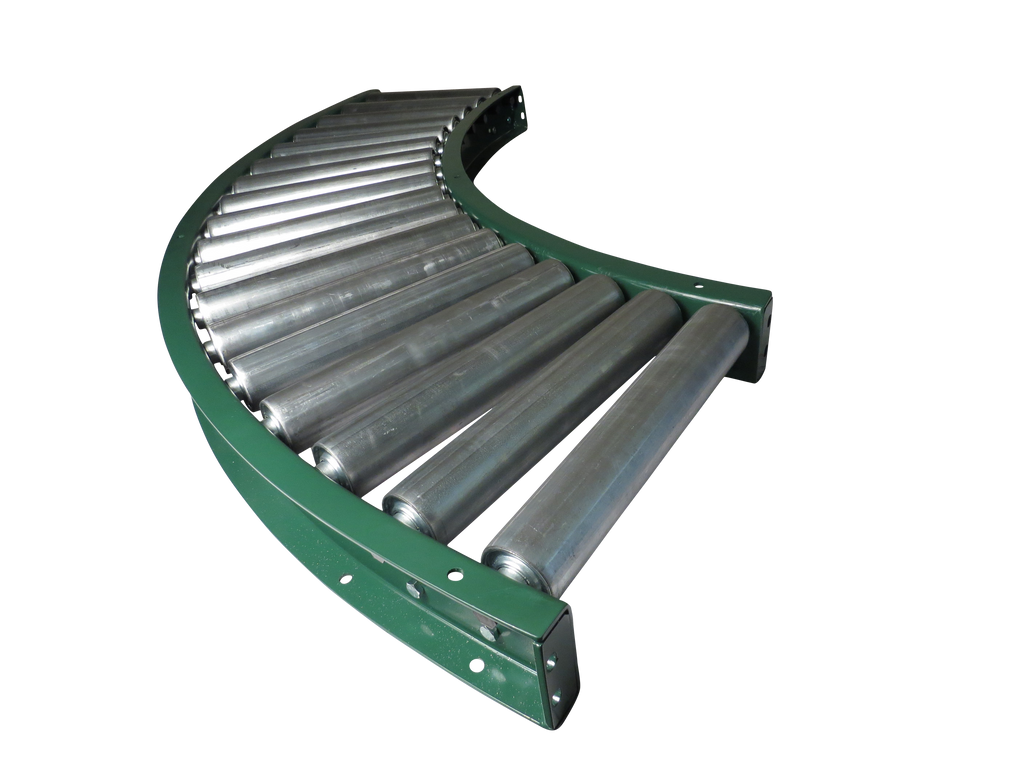

The Model 14F_ _SG roller conveyor is constructed of 4"x7ga Painted Steel side channels, 2-1/2"x11ga Galv Stl tubing, 11/16" Hex Plain Stl roller shaft, and Butt Plate couplers.
Refer to the Roller Conveyor Selection Guide for help.
14F90SG03B37BP Construction
- Type: Curve
- Angle (deg): 90
- Inner Radius (in): 32.5
- Between Frame (in): 37
- Roller Centers (in): 3
- Roller Bearing: Commercial Light Oil
- Sleeve: none
- Roller Capacity (lbs): 822
- Frame Capacity (lbs/ft): 230 on 10' support centers, 1,050 on 5' centers
- Weight (lbs): 372
14F_ _SG Configurations
- Roller Centers (in): 3, 4.5, 6
- Straights (ft): 5, 10
- Curves (deg): 45, 90
- Sleeve: none
