15X10AX45AHR
i LEAD TIME: 7 working days
$309.00
Product Model Information

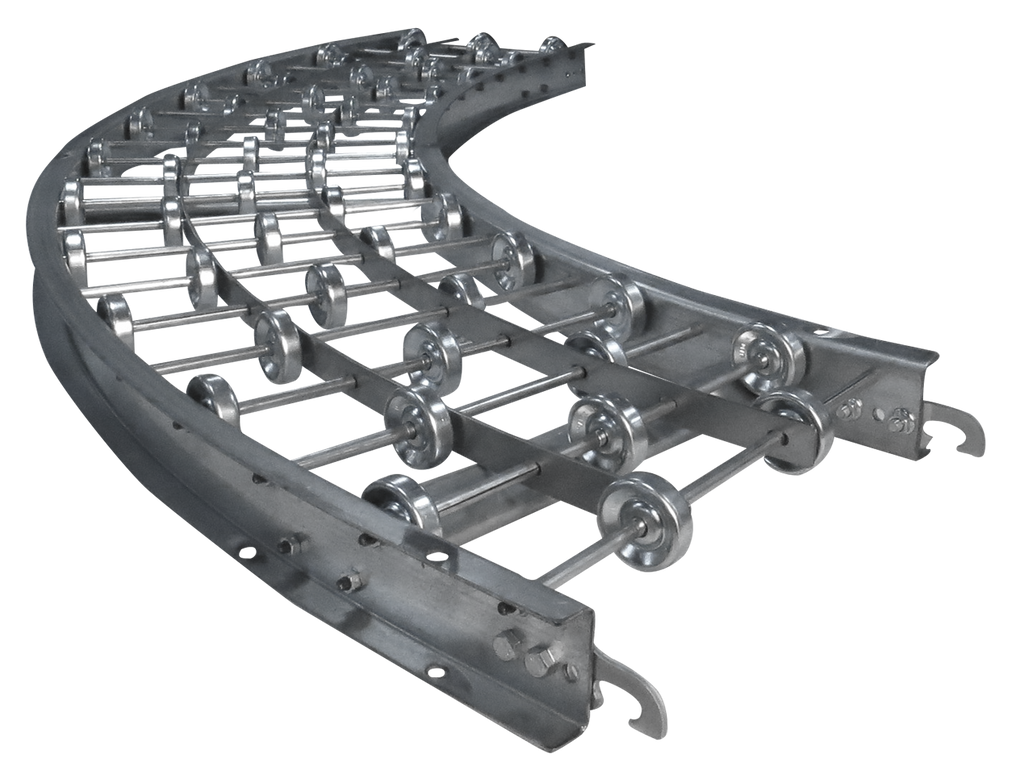

The Model 15X10 skatewheel conveyor is constructed of 2-1/2" side channels, 1-15/16" diameter wheels with a wheel density of 10 wheels per foot, and 1/4" diameter steel axles on 3" centers. This model has an overall width of 15" and a between frame of 13".
Refer to the Skatewheel Conveyor Selection Guide for help.
15X10AX45AHR Construction
- Type: Curve
- Frame (in): 2-1/2 Aluminum
- Angle (deg): 45
- Inner Radius (in): 36
- Overall Width (in): 15
- Axle Centers (in): 3
- Wheel: Aluminum
- Wheel Capacity (lbs): 40
- Frame Capacity (lbs/ft): 16 on 10' support centers, 120 on 5' centers
- Weight (lbs): 13
15X10 Configurations
- Straights (ft): 5, 10
- Curves (deg): 45, 90
- Spurs: none
- Wheels: Galv Steel, Aluminum
