Product Model Information

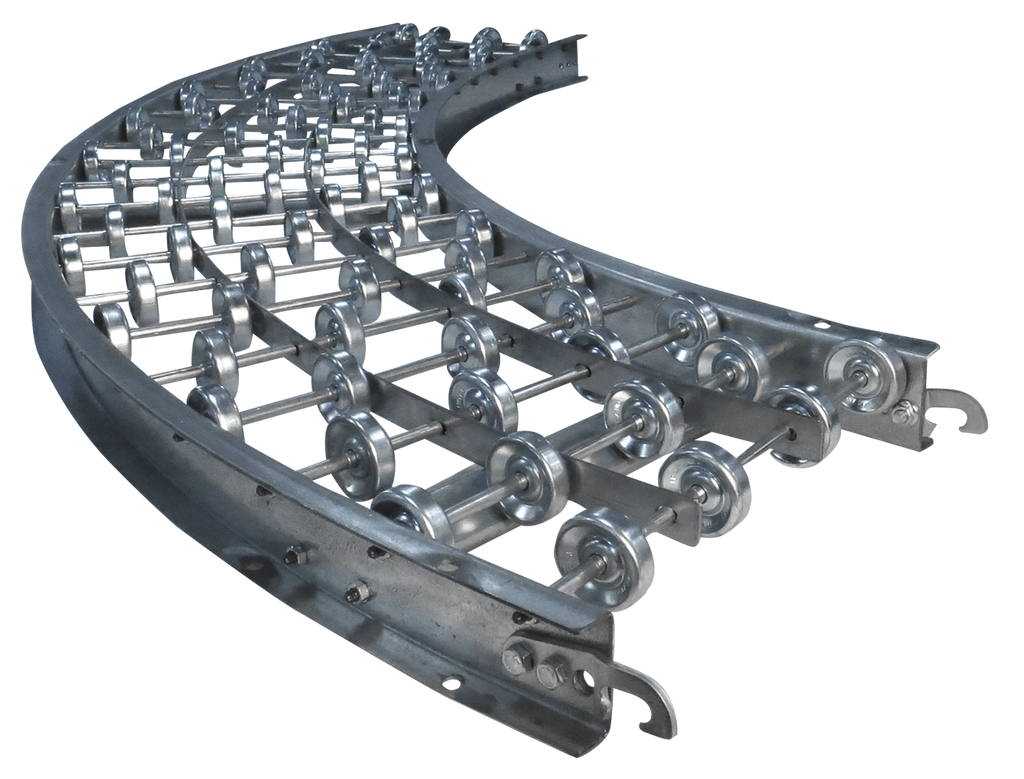

The Model 15X16 skatewheel conveyor is constructed of 2-1/2" side channels, 1-15/16" diameter wheels with a wheel density of 16 wheels per foot, and 1/4" diameter steel axles on 3" centers. This model has an overall width of 15" and a between frame of 13".
Refer to the Skatewheel Conveyor Selection Guide for help.
- Type: Curve
- Frame (in): 2-1/2 Aluminum
- Angle (deg): 45
- Inner Radius (in): 36
- Overall Width (in): 15
- Axle Centers (in): 3
- Wheel: Aluminum
- Wheel Capacity (lbs): 40
- Frame Capacity (lbs/ft): 16 on 10' support centers, 120 on 5' centers
- Weight (lbs): 14
- Straights (ft): 5, 10
- Curves (deg): 45, 90
- Spurs: Straight 30/45 Deg, Curve 90 Deg
- Wheels: Galv Steel, Aluminum
