15X16AX90AHR

i LEAD TIME: 7 working days
$287.20

Product Model Information

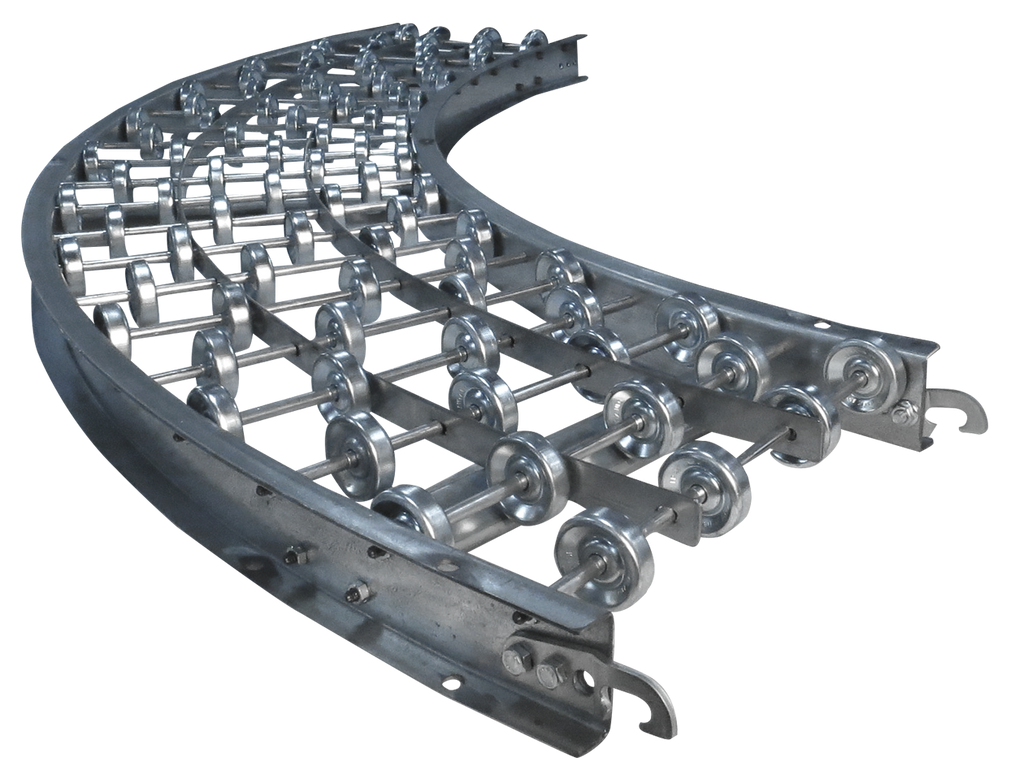

The Model 15X16 skatewheel conveyor is constructed of 2-1/2" side channels, 1-15/16" diameter wheels with a wheel density of 16 wheels per foot, and 1/4" diameter steel axles on 3" centers. This model has an overall width of 15" and a between frame of 13".

Refer to the Skatewheel Conveyor Selection Guide for help.

15X16AX90AHR Construction

  • Type: Curve
  • Frame (in): 2-1/2 Aluminum
  • Angle (deg): 90
  • Inner Radius (in): 36
  • Overall Width (in): 15
  • Axle Centers (in): 3
  • Wheel: Aluminum
  • Wheel Capacity (lbs): 40
  • Frame Capacity (lbs/ft): 16 on 10' support centers, 120 on 5' centers
  • Weight (lbs): 27

15X16 Configurations

  • Straights (ft): 5, 10
  • Curves (deg): 45, 90
  • Spurs: Straight 30/45 Deg, Curve 90 Deg
  • Wheels: Galv Steel, Aluminum
