24X40AX90ANC
Product Model Information

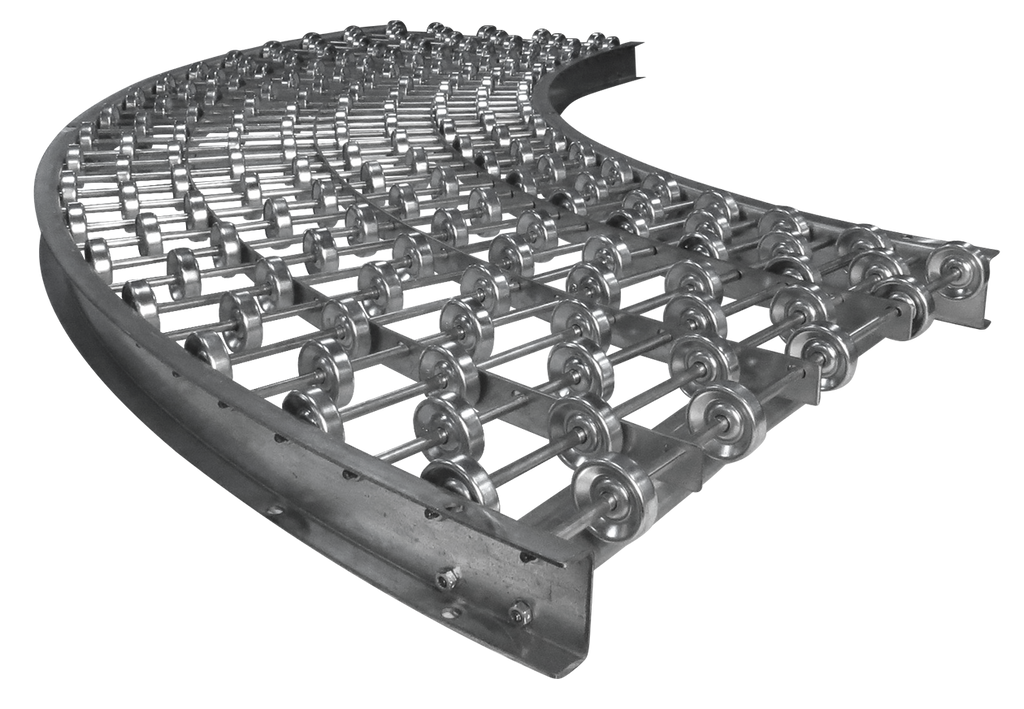

The Model 24X40 skatewheel conveyor is constructed of 2-1/2" side channels, 1-15/16" diameter wheels with a wheel density of 40 wheels per foot, and 1/4" diameter steel axles on 1.5" centers. This model has an overall width of 24" and a between frame of 22".
Refer to the Skatewheel Conveyor Selection Guide for help.
24X40AX90ANC Construction
- Type: Curve
- Frame (in): 2-1/2 Aluminum
- Angle (deg): 90
- Inner Radius (in): 36
- Overall Width (in): 24
- Axle Centers (in): 1.5
- Wheel: Aluminum
- Wheel Capacity (lbs): 40
- Frame Capacity (lbs/ft): 16 on 10' support centers, 120 on 5' centers
- Weight (lbs): 64
24X40 Configurations
- Straights (ft): 5, 10
- Curves (deg): 45, 90
- Spurs: none
- Wheels: Galv Steel, Aluminum, Black Nylon
