2F10EFA03B13BP

i LEAD TIME: 12 working days
$433.20

Product Model Information

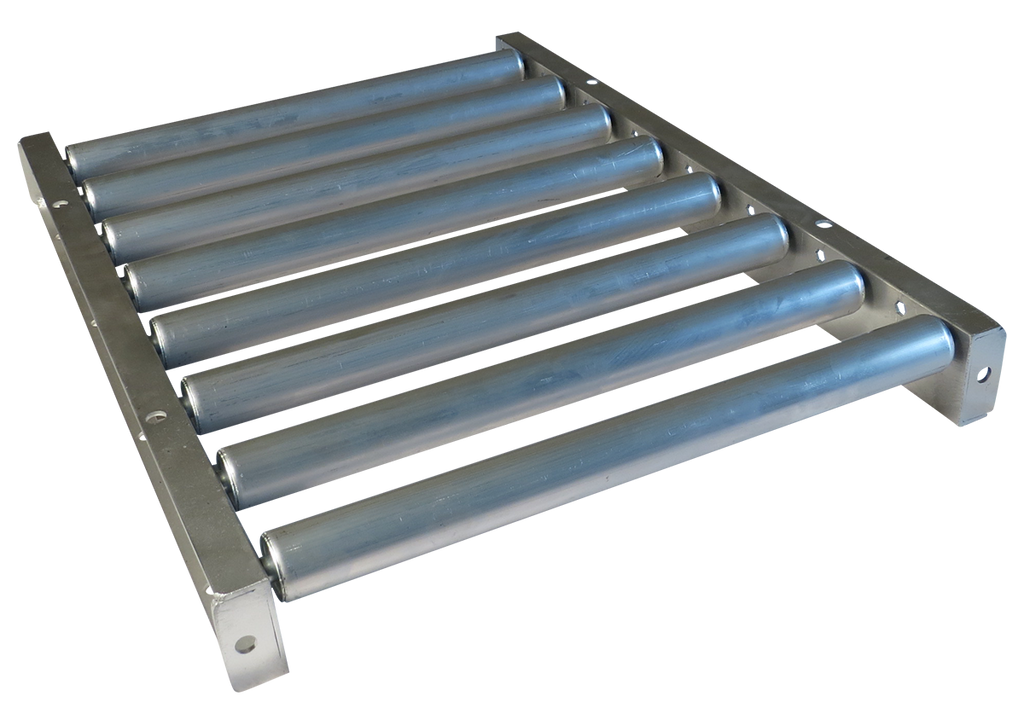

The Model 2F_ _EFA roller conveyor is constructed of 2-1/2" Alum side channels, 1-3/8"x18ga Alum tubing, 5/16" Hex Plain Stl roller shaft, and Butt Plate couplers.

Refer to the Roller Conveyor Selection Guide for help.

2F10EFA03B13BP Construction

  • Type: Straight
  • Length (ft): 10
  • Between Frame (in): 13
  • Roller Centers (in): 3
  • Roller Bearing: Commercial Light Oil
  • Sleeve: none
  • Roller Capacity (lbs): 94
  • Frame Capacity (lbs/ft): 16 on 10' support centers, 120 on 5' centers
  • Weight (lbs): 44.5

2F_ _EFA Configurations

  • Roller Centers (in): 1.5, 3, 4.5, 6
  • Straights (ft): 5, 10
  • Curves (deg): 45, 90
  • Sleeve: none
