30X72AX05ANC

i LEAD TIME: 5 working days
$1,141.00

Product Model Information

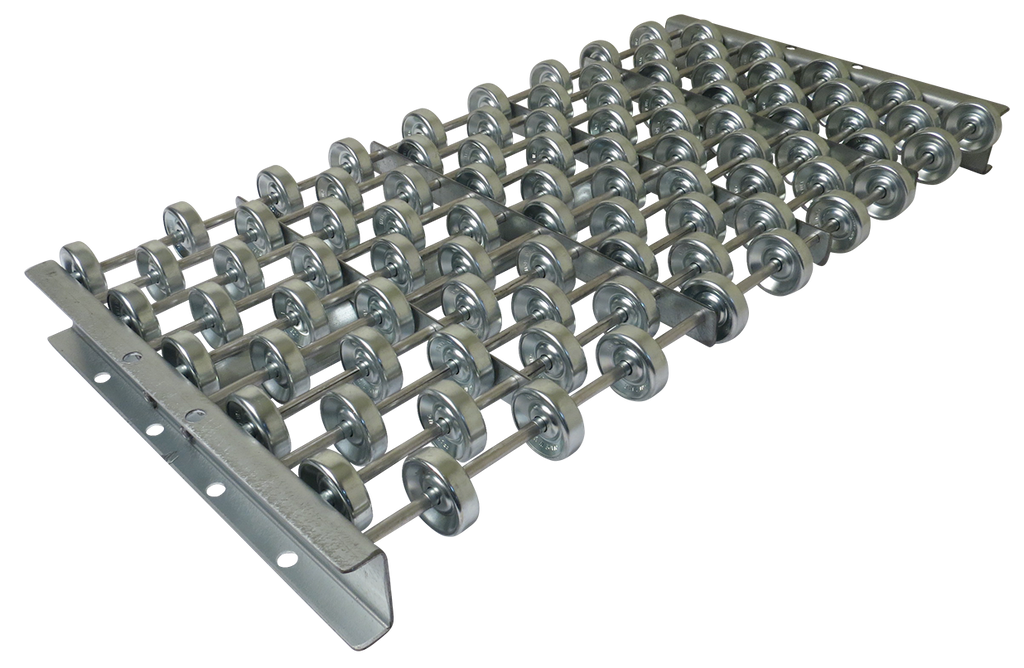

The Model 30X72 skatewheel conveyor is constructed of 2-1/2" side channels, 1-15/16" diameter wheels with a wheel density of 72 wheels per foot, and 1/4" diameter steel axles on 1.5" centers. This model has an overall width of 30" and a between frame of 28".

Refer to the Skatewheel Conveyor Selection Guide for help.



30X72AX05ANC Construction

  • Type: Straight
  • Frame (in): 2-1/2 Aluminum
  • Length (ft): 5
  • Overall Width (in): 30
  • Axle Centers (in): 1.5
  • Wheel: Aluminum
  • Wheel Capacity (lbs): 40
  • Frame Capacity (lbs/ft): 16 on 10' support centers, 120 on 5' centers
  • Weight (lbs): 68



30X72 Configurations

  • Straights (ft): 5, 10
  • Curves (deg): 45, 90
  • Spurs: none
  • Wheels: Galv Steel, Aluminum, Black Nylon
