30X72GX45GNC

i LEAD TIME: 7 working days
$1,058.00

Product Model Information

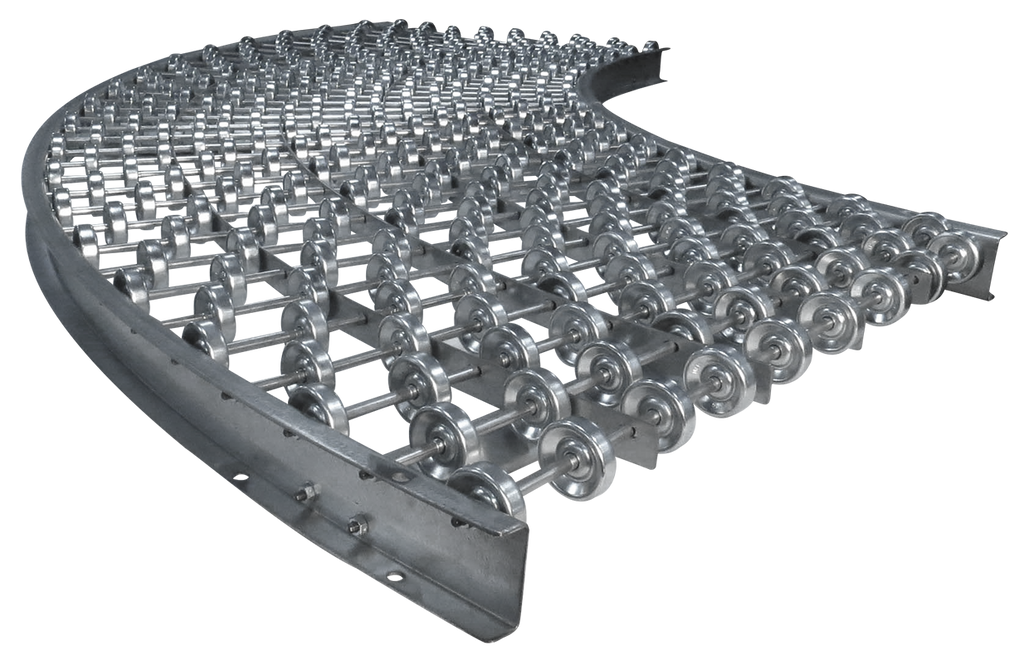

The Model 30X72 skatewheel conveyor is constructed of 2-1/2" side channels, 1-15/16" diameter wheels with a wheel density of 72 wheels per foot, and 1/4" diameter steel axles on 1.5" centers. This model has an overall width of 30" and a between frame of 28".

Refer to the Skatewheel Conveyor Selection Guide for help.



30X72GX45GNC Construction

  • Type: Curve
  • Frame (in): 2-1/2 Galv Steel
  • Angle (deg): 45
  • Inner Radius (in): 36
  • Overall Width (in): 30
  • Axle Centers (in): 1.5
  • Wheel: Galvanized Steel
  • Wheel Capacity (lbs): 65
  • Frame Capacity (lbs/ft): 36 on 10' support centers, 260 on 5' centers
  • Weight (lbs): 78



30X72 Configurations

  • Straights (ft): 5, 10
  • Curves (deg): 45, 90
  • Spurs: none
  • Wheels: Galv Steel, Aluminum, Black Nylon
