30X72GX90GNC
i LEAD TIME: 7 working days
$1,675.00
Product Model Information

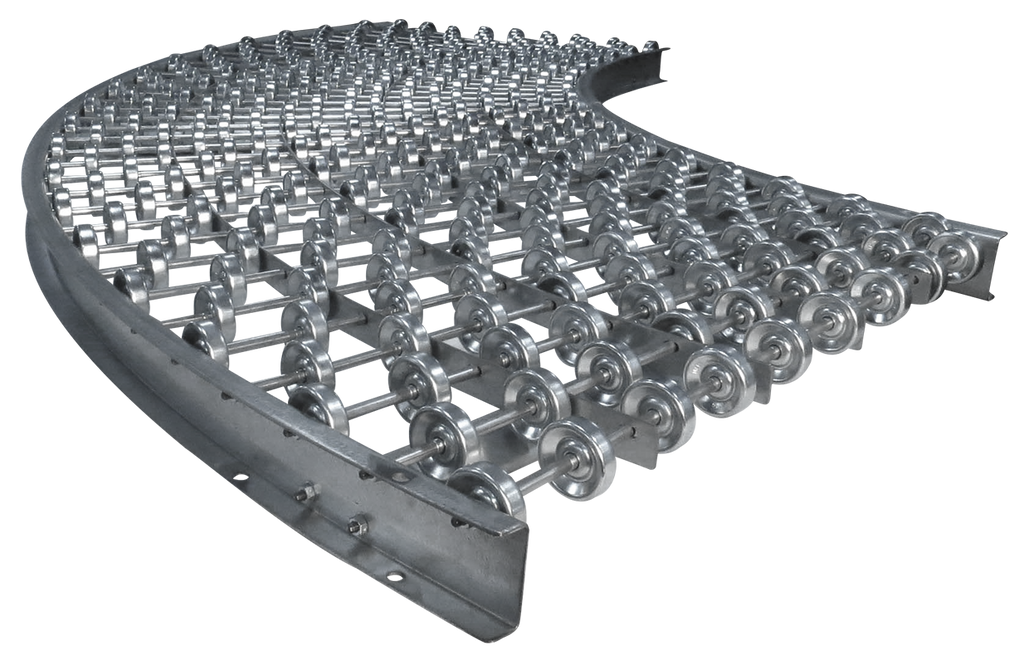

The Model 30X72 skatewheel conveyor is constructed of 2-1/2" side channels, 1-15/16" diameter wheels with a wheel density of 72 wheels per foot, and 1/4" diameter steel axles on 1.5" centers. This model has an overall width of 30" and a between frame of 28".
Refer to the Skatewheel Conveyor Selection Guide for help.
30X72GX90GNC Construction
- Type: Curve
- Frame (in): 2-1/2 Galv Steel
- Angle (deg): 90
- Inner Radius (in): 36
- Overall Width (in): 30
- Axle Centers (in): 1.5
- Wheel: Galvanized Steel
- Wheel Capacity (lbs): 65
- Frame Capacity (lbs/ft): 36 on 10' support centers, 260 on 5' centers
- Weight (lbs): 153
30X72 Configurations
- Straights (ft): 5, 10
- Curves (deg): 45, 90
- Spurs: none
- Wheels: Galv Steel, Aluminum, Black Nylon
When Can This Item Ship?
Lead times are subject to change depending on the size of your order. If we cannot meet the lead time that is listed on the website, we will contact you to discuss your order and your options.
All items in your order will ship together. The lead time for your order is determined by the items in your order with the longest lead time.
For more information about our lead times, please visit out FAQ page.
$1,675.00
