30X72PX05GNC
Product Model Information

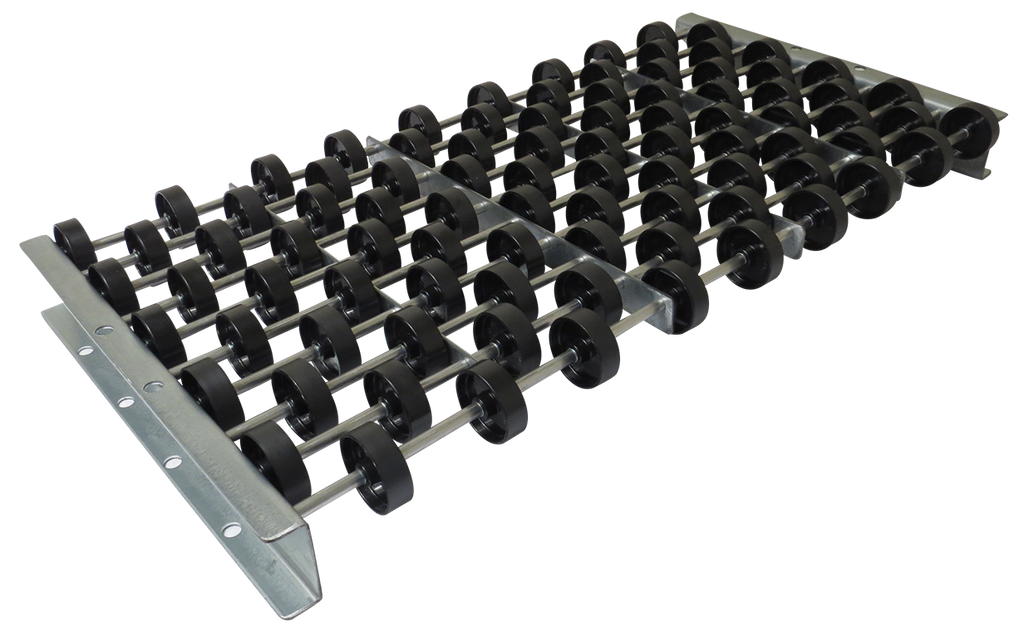

The Model 30X72 skatewheel conveyor is constructed of 2-1/2" side channels, 1-15/16" diameter wheels with a wheel density of 72 wheels per foot, and 1/4" diameter steel axles on 1.5" centers. This model has an overall width of 30" and a between frame of 28".
Refer to the Skatewheel Conveyor Selection Guide for help.
30X72PX05GNC Construction
- Type: Straight
- Frame (in): 2-1/2 Galv Steel
- Length (ft): 5
- Overall Width (in): 30
- Axle Centers (in): 1.5
- Wheel: Black HDPE
- Wheel Capacity (lbs): 40
- Frame Capacity (lbs/ft): 36 on 10' support centers, 260 on 5' centers
- Weight (lbs): 63
30X72 Configurations
- Straights (ft): 5, 10
- Curves (deg): 45, 90
- Spurs: none
- Wheels: Galv Steel, Aluminum, Black Nylon
