3BH30M14.5B27CS5SL

i LEAD TIME: 5 working days
$188.00

Product Model Information

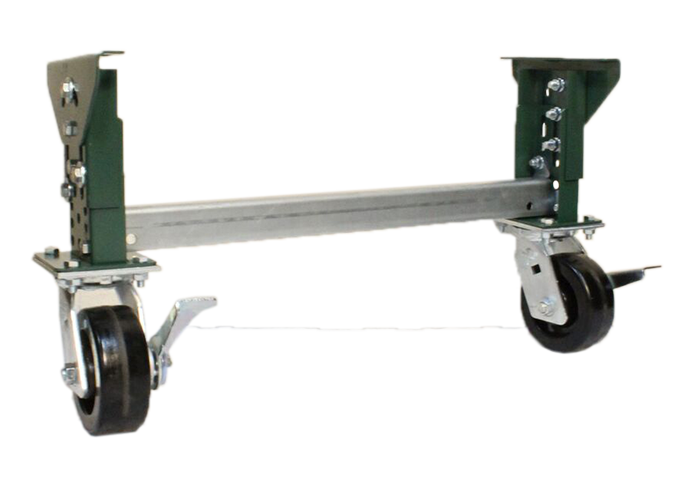

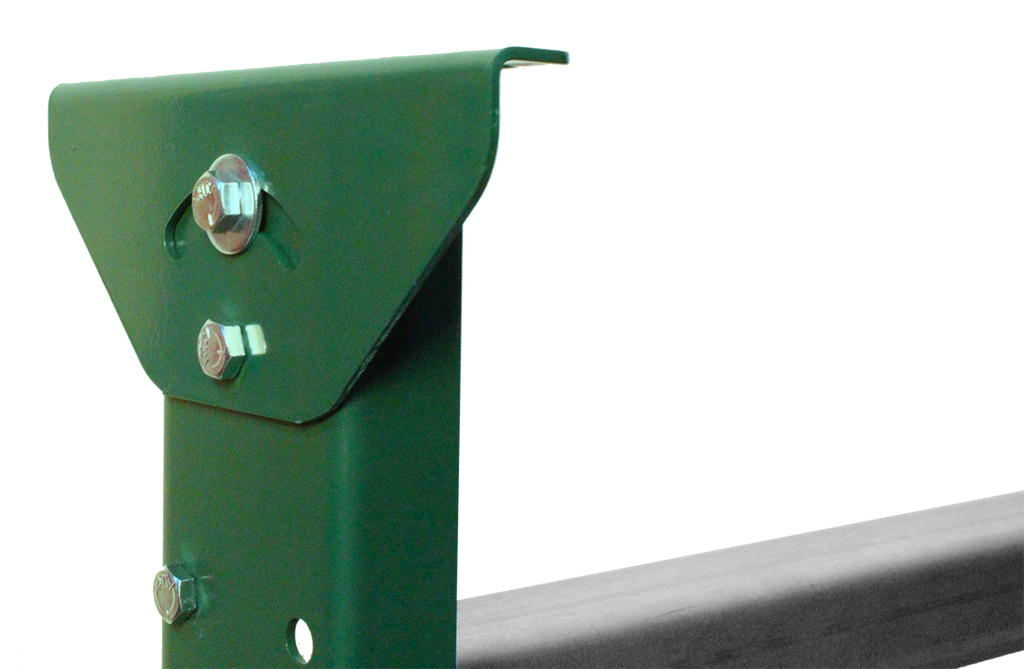

The 3BH30CS5SL model support is a 1,800 pound capacity Hstand which may be used with Ashland Conveyor 2-1/2" and 3-1/2" channel frames, not for use with 4" frames. The Hstand is comes with 5" swivel casters equipped with side-lock brakes. Upper and lower legs are constructed of 11 ga steel. Assembly required..

Refer to the Support Selection Guide for help.

3BH30M14.5B27CS5SL Construction

  • Between Frame (in): 27
  • Height Range (in): 12-13/16 to 16-1/4
  • No of Crossbraces: 1
  • Capacity (lbs): 1800
  • Weight (lbs): 9.6

3BH30 Configurations

  • Between Frame(in): 7 to 51
  • Height Range (in): 16-1/4 to 67-3/4
  • Swivel Casters: yes
