Product Model Information

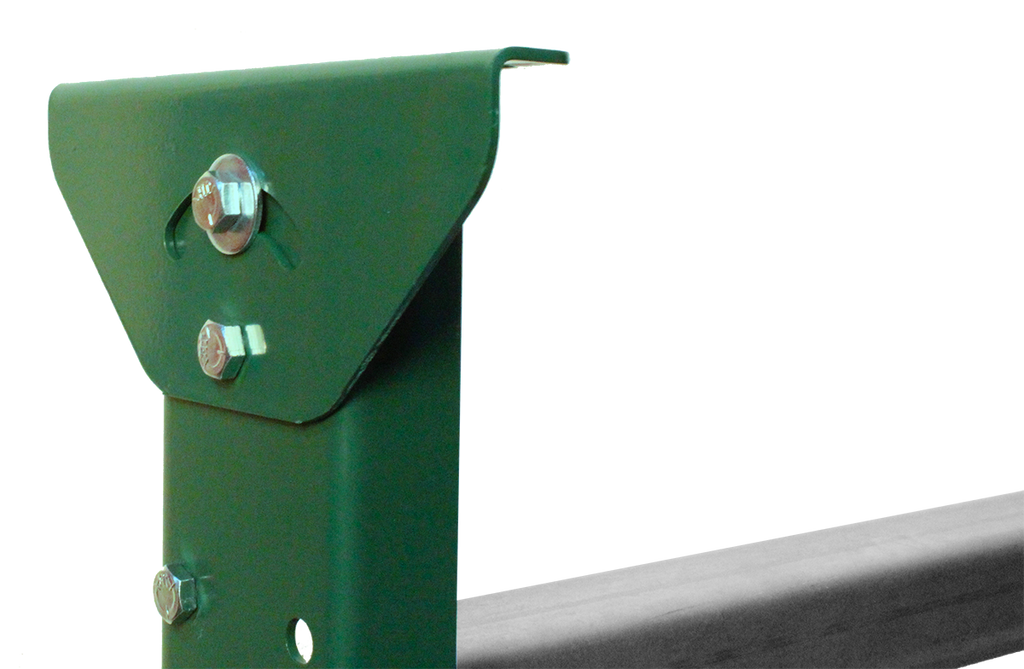

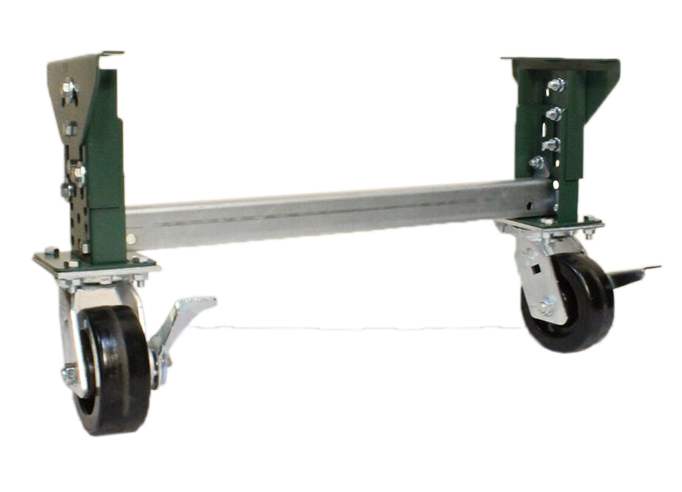

The 3BH30CS5SL model support is a 1,800 pound capacity Hstand which may be used with Ashland Conveyor 2-1/2" and 3-1/2" channel frames, not for use with 4" frames. The Hstand is comes with 5" swivel casters equipped with side-lock brakes. Upper and lower legs are constructed of 11 ga steel. Assembly required..
Refer to the Support Selection Guide for help.
- Between Frame (in): 43
- Height Range (in): 12-13/16 to 16-1/4
- No of Crossbraces: 1
- Capacity (lbs): 1800
- Weight (lbs): 9.6
- Between Frame(in): 7 to 51
- Height Range (in): 16-1/4 to 67-3/4
- Swivel Casters: yes
