Product Model Information

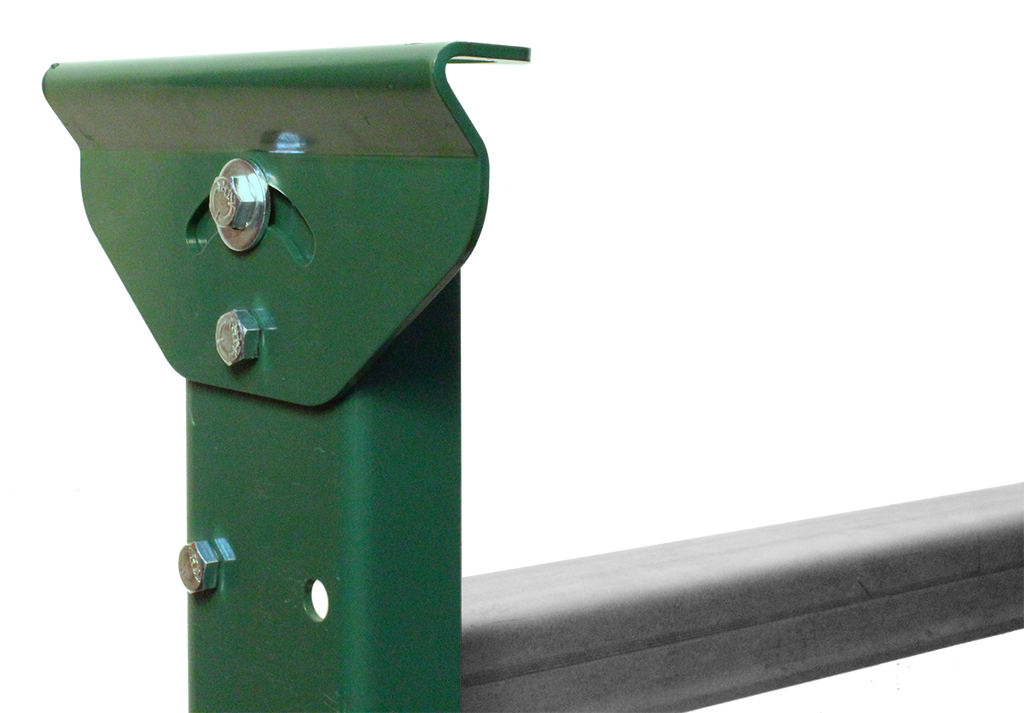

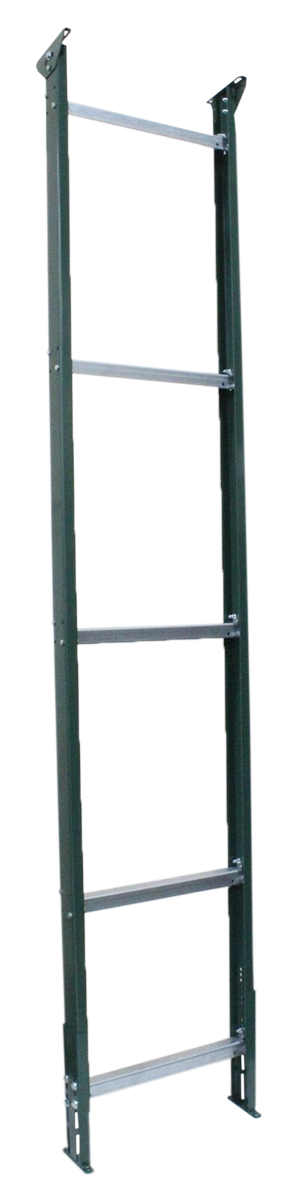

The 4BH30 model support is a 3,000 pound capacity Hstand which may be used with Ashland Conveyor 4" channel frames, not for use with 2-1/2" and 3-1/2" frames. The Hstand is floor mounted for permanent installations as opposed to tripods which are portable. Upper and lower legs are constructed of 11 ga steel. Single legs are available for applications such as curves. Assembly required..
Refer to the Support Selection Guide for help.
- Between Frame (in): 18
- Height Range (in): 121-1/4 to 133-1/4
- No of Crossbraces: 5
- Capacity (lbs): 3000
- Weight (lbs): 58.5
- Between Frame(in): 7 to 51 & 55
- Height Range (in): 6-5/16 to 133-1/4
- Swivel Casters: no
When Can This Item Ship?
Lead times are subject to change depending on the size of your order. If we cannot meet the lead time that is listed on the website, we will contact you to discuss your order and your options.
All items in your order will ship together. The lead time for your order is determined by the items in your order with the longest lead time.
For more information about our lead times, please visit out FAQ page.
