i LEAD TIME: 5 working days

Product Model Information

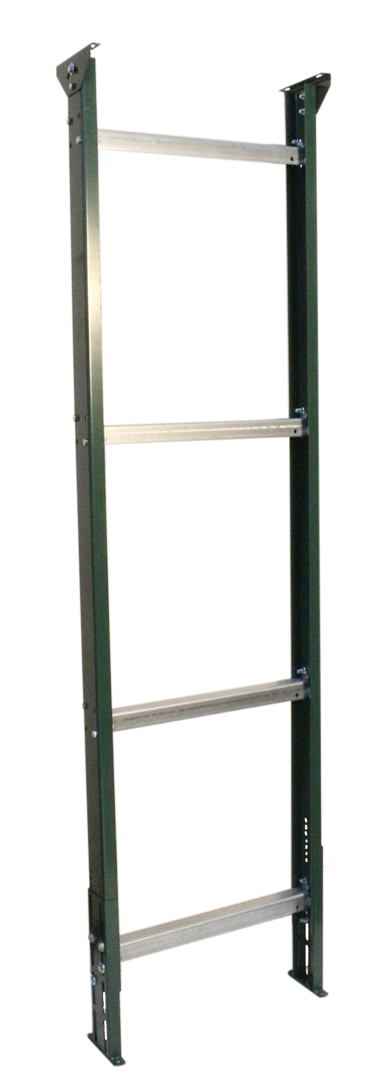

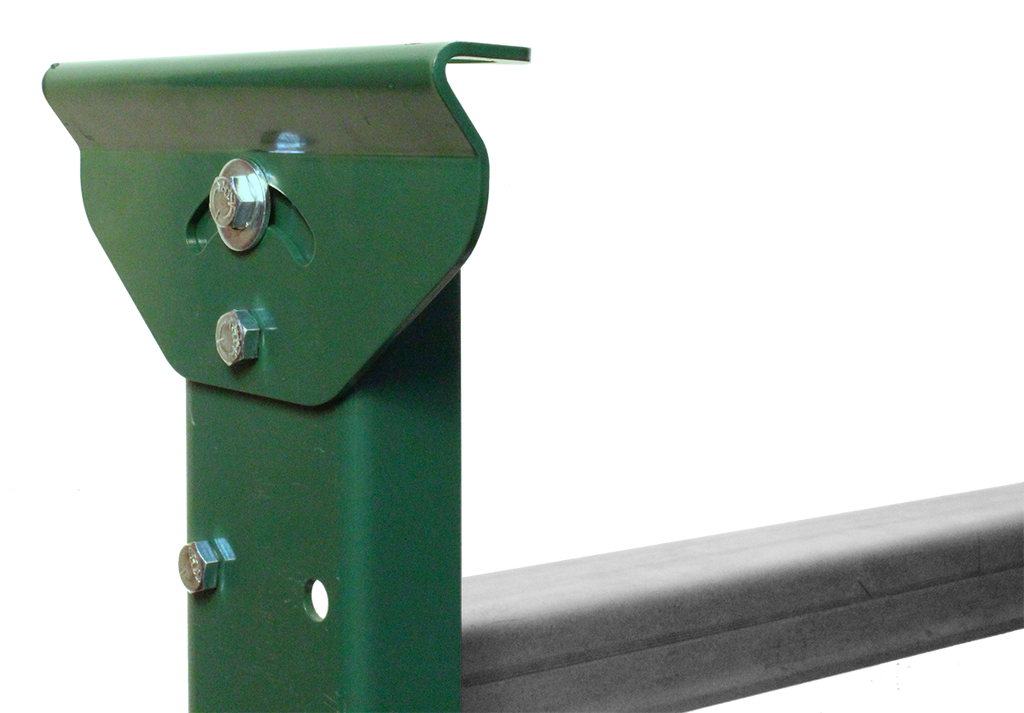

The 4BH30 model support is a 3,000 pound capacity Hstand which may be used with Ashland Conveyor 4" channel frames, not for use with 2-1/2" and 3-1/2" frames. The Hstand is floor mounted for permanent installations as opposed to tripods which are portable. Upper and lower legs are constructed of 11 ga steel. Single legs are available for applications such as curves. Assembly required..

Refer to the Support Selection Guide for help.

4BH30M91B40 Construction

  • Between Frame (in): 40
  • Height Range (in): 85-1/4 to 97-1/4
  • No of Crossbraces: 4
  • Capacity (lbs): 3000
  • Weight (lbs): 44.1

4BH30 Configurations

  • Between Frame(in): 7 to 51 & 55
  • Height Range (in): 6-5/16 to 133-1/4
  • Swivel Casters: no
