4F10KA06B36BP

i LEAD TIME: 7 working days
$600.30

Product Model Information

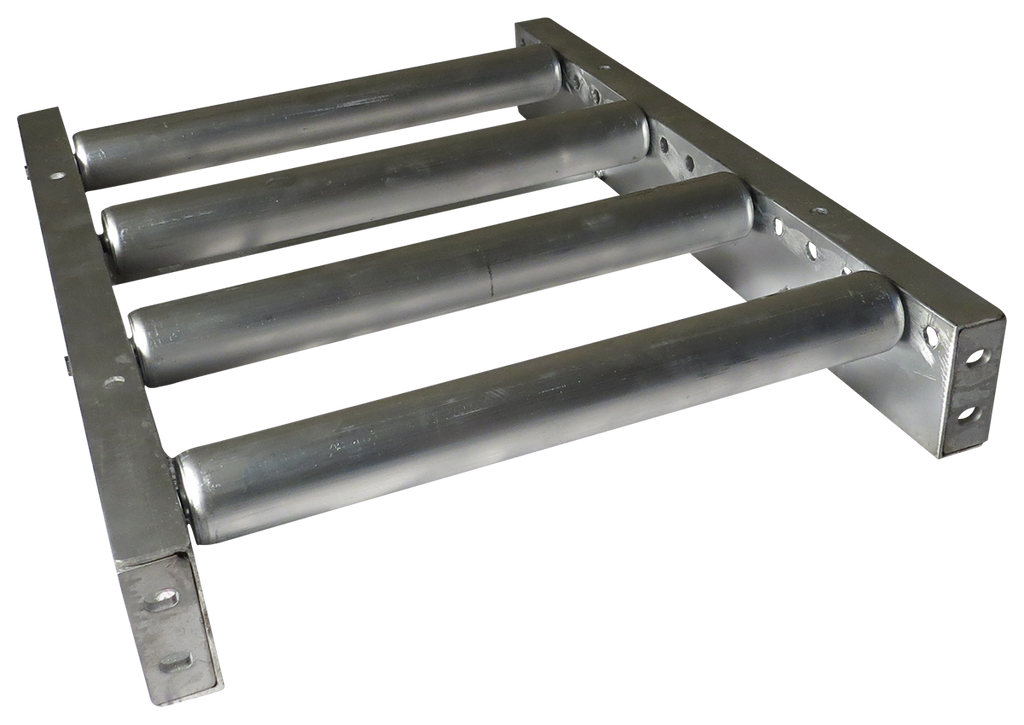

The Model 4F_ _KA roller conveyor is constructed of 3-1/2" Alum side channels, 1.9"x16ga Alum tubing, 7/16" Hex Plain Stl roller shaft, and Butt Plate couplers.

Refer to the Roller Conveyor Selection Guide for help.

4F10KA06B36BP Construction

  • Type: Straight
  • Length (ft): 10
  • Between Frame (in): 36
  • Roller Centers (in): 6
  • Roller Bearing: Commercial Light Oil
  • Sleeve: none
  • Roller Capacity (lbs): 261
  • Frame Capacity (lbs/ft): 45 on 10' support centers, 420 on 5' centers
  • Weight (lbs): 87.1

4F_ _KA Configurations

  • Roller Centers (in): 3, 4.5, 6
  • Straights (ft): 5, 10
  • Curves (deg): 45, 90
  • Sleeve: none
