4F45KA03B33BP
i LEAD TIME: 10 working days
$581.90
Product Model Information

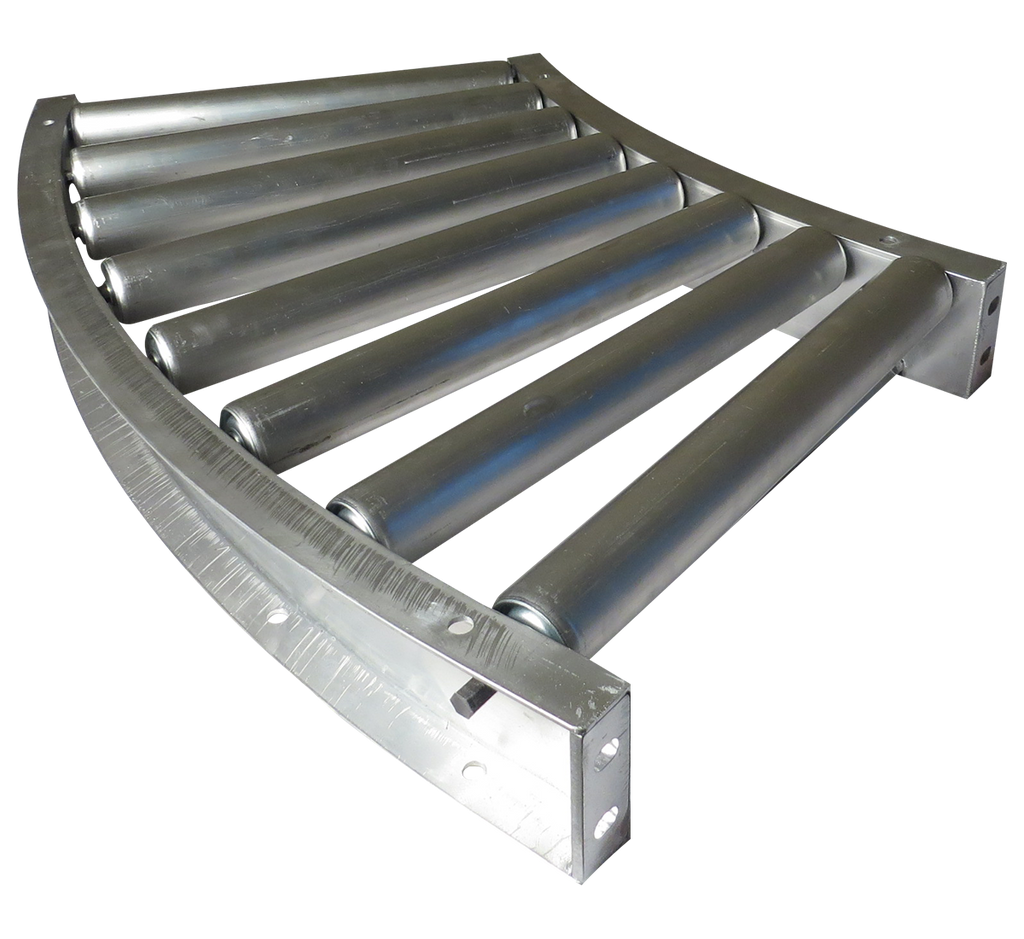

The Model 4F_ _KA roller conveyor is constructed of 3-1/2" Alum side channels, 1.9"x16ga Alum tubing, 7/16" Hex Plain Stl roller shaft, and Butt Plate couplers.
Refer to the Roller Conveyor Selection Guide for help.
4F45KA03B33BP Construction
- Type: Curve
- Angle (deg): 45
- Inner Radius (in): 30
- Between Frame (in): 33
- Roller Centers (in): 3
- Roller Bearing: Commercial Light Oil
- Sleeve: none
- Roller Capacity (lbs): 270
- Frame Capacity (lbs/ft): 45 on 10' support centers, 420 on 5' centers
- Weight (lbs): 32.5
4F_ _KA Configurations
- Roller Centers (in): 3, 4.5, 6
- Straights (ft): 5, 10
- Curves (deg): 45, 90
- Sleeve: none
When Can This Item Ship?
Lead times are subject to change depending on the size of your order. If we cannot meet the lead time that is listed on the website, we will contact you to discuss your order and your options.
All items in your order will ship together. The lead time for your order is determined by the items in your order with the longest lead time.
For more information about our lead times, please visit out FAQ page.
