4F90KA03B10BP
i LEAD TIME: 10 working days
$415.80
Product Model Information

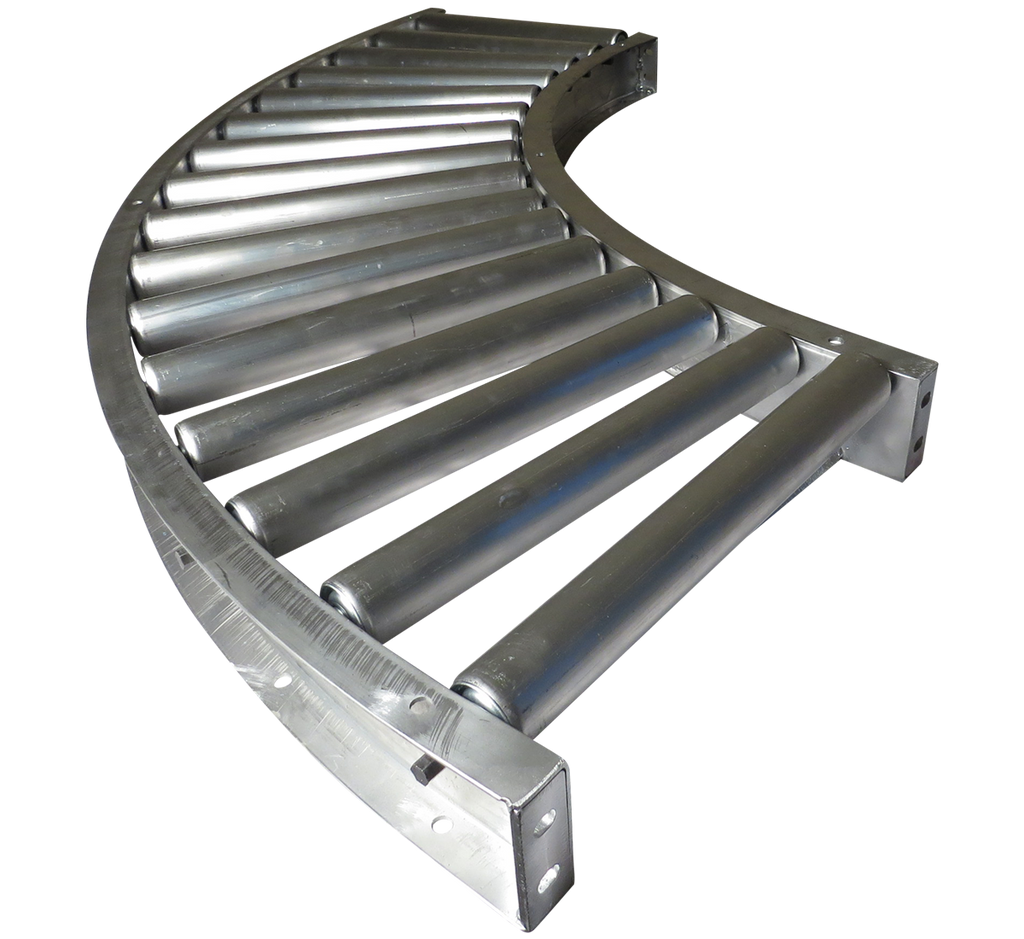

The Model 4F_ _KA roller conveyor is constructed of 3-1/2" Alum side channels, 1.9"x16ga Alum tubing, 7/16" Hex Plain Stl roller shaft, and Butt Plate couplers.
Refer to the Roller Conveyor Selection Guide for help.
4F90KA03B10BP Construction
- Type: Curve
- Angle (deg): 90
- Inner Radius (in): 30
- Between Frame (in): 10
- Roller Centers (in): 3
- Roller Bearing: Commercial Light Oil
- Sleeve: none
- Roller Capacity (lbs): 270
- Frame Capacity (lbs/ft): 45 on 10' support centers, 420 on 5' centers
- Weight (lbs): 27.5
4F_ _KA Configurations
- Roller Centers (in): 3, 4.5, 6
- Straights (ft): 5, 10
- Curves (deg): 45, 90
- Sleeve: none
