5BTSFR06

i LEAD TIME: 3 working days
$71.80

Product Model Information

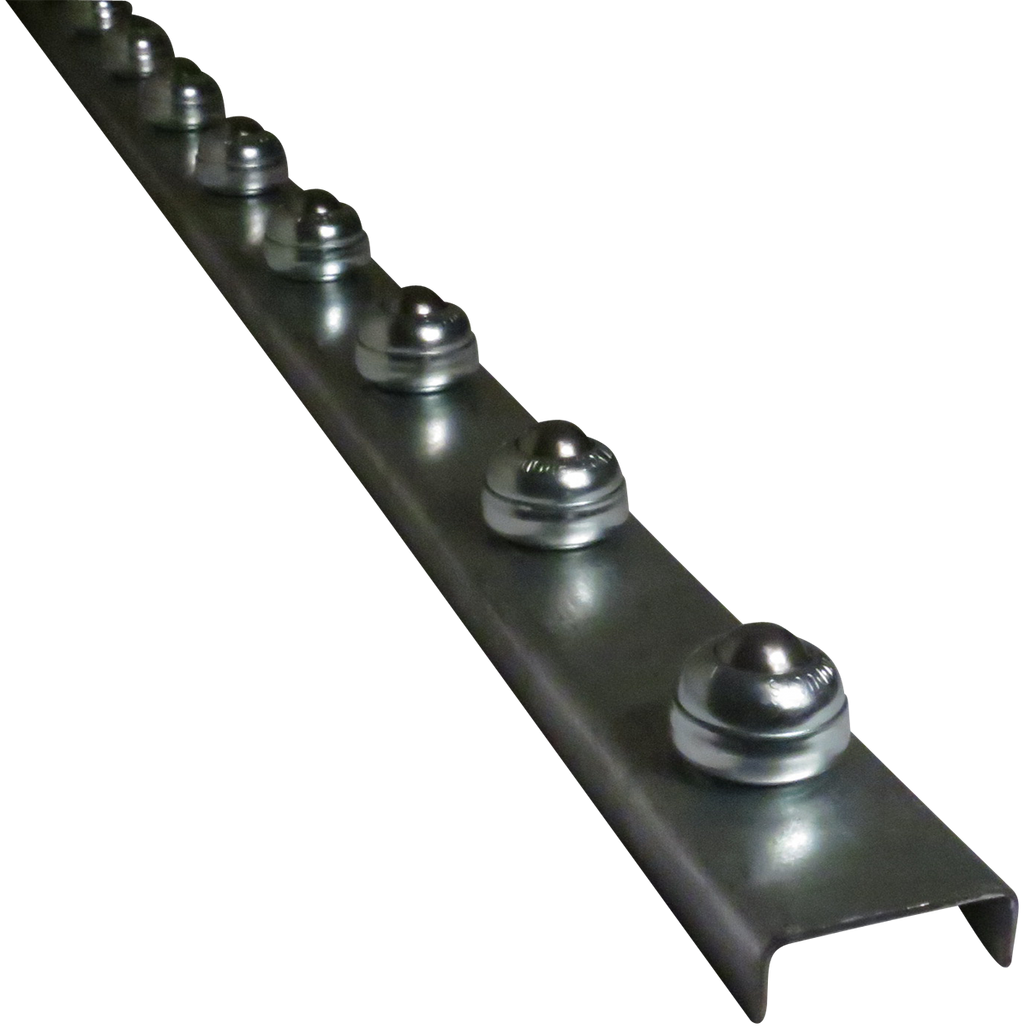

The Model BTSFR flow rail is constructed of 2-1/2" galvanized steel channel. The stud mounted ball transfers are zinc plated and have 1" diameter balls.

Refer to the Flow Rail Selection Guide for help.

Construction

  • Type: Ball Transfer
  • Rail: 1"x2-1/2" Galv Stl Chnl
  • Length (ft): 5
  • Centers (in): 6
  • Rolling Surface: Steel
  • Ball Transfer Capacity (lbs): 75
  • Flow Rail Capacity (lbs/ft): 150 continuously supported
  • Weight (lbs): 12

BTSFR Configurations

  • Lengths (ft): 5, 10
  • Centers (in): 3, 6
