5F45SGPU03B15BP

i LEAD TIME: 12 working days
$1,059.80

Product Model Information

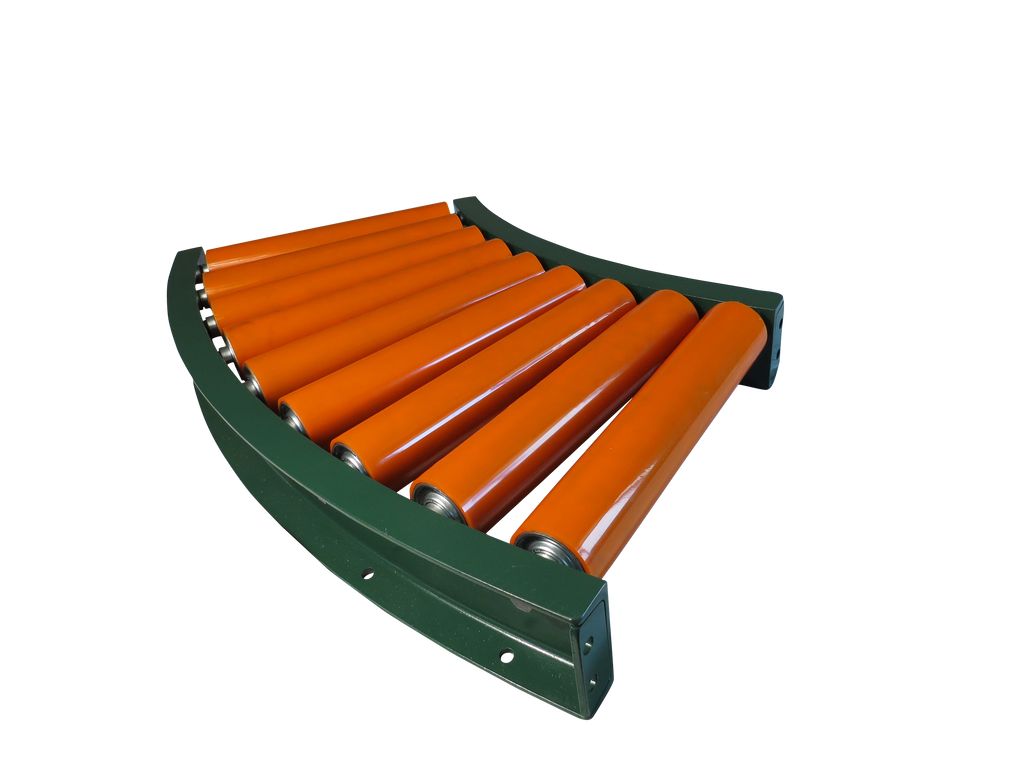

The Model 5F_ _SG roller conveyor is constructed of 4"x5.4# Painted Steel side channels, 2-1/2"x11ga Galv Stl tubing, 11/16" Hex Plain Stl roller shaft, and Butt Plate couplers.

Refer to the Roller Conveyor Selection Guide for help.

5F45SGPU03B15BP Construction

  • Type: Curve
  • Angle (deg): 45
  • Inner Radius (in): 32.5
  • Between Frame (in): 15
  • Roller Centers (in): 3
  • Roller Bearing: Commercial Light Oil
  • Sleeve: Orange Polyurethane
  • Roller Capacity (lbs): 850
  • Frame Capacity (lbs/ft): 300 on 10' support centers, 1,550 on 5' centers
  • Weight (lbs): 84.2

5F_ _SG Configurations

  • Roller Centers (in): 3, 4.5, 6
  • Straights (ft): 5, 10
  • Curves (deg): 45, 90
  • Sleeve: 1/8 Orange Polyurethane
