Product Model Information

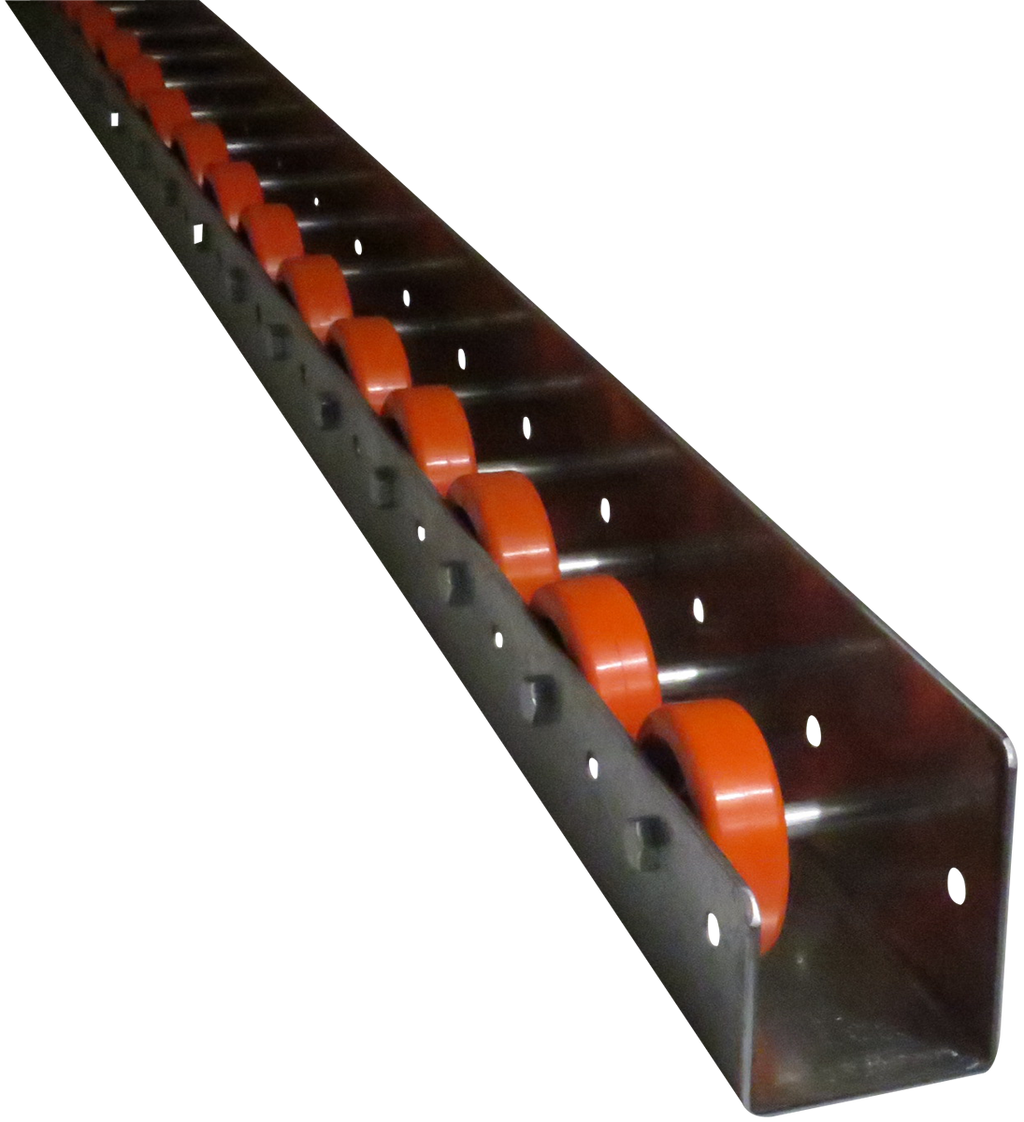

The Model FR2 flow rail is constructed of 2-1/4"x3" galvanized J channel. The wheels are 1-15/16" diameter and 13/16" wide.
Refer to the Flow Rail Selection Guide for help.
- Type: Wheel
- Rail: 2-1/4"x3" Galv Stl J Chnl
- Length (ft): 5
- Centers (in): 3
- Wheels Per Foot: 4
- Rolling Surface: Steel
- Wheel Capacity (lbs): 65
- Flow Rail Capacity (lbs/ft): 24 on 10' support centers, 196 on 5' centers
- Weight (lbs): 17
- Lengths (ft): 5, 10
- Centers (in): 1.5, 3
