7F45DG03B13BP

i LEAD TIME: 10 working days
$441.40

Product Model Information

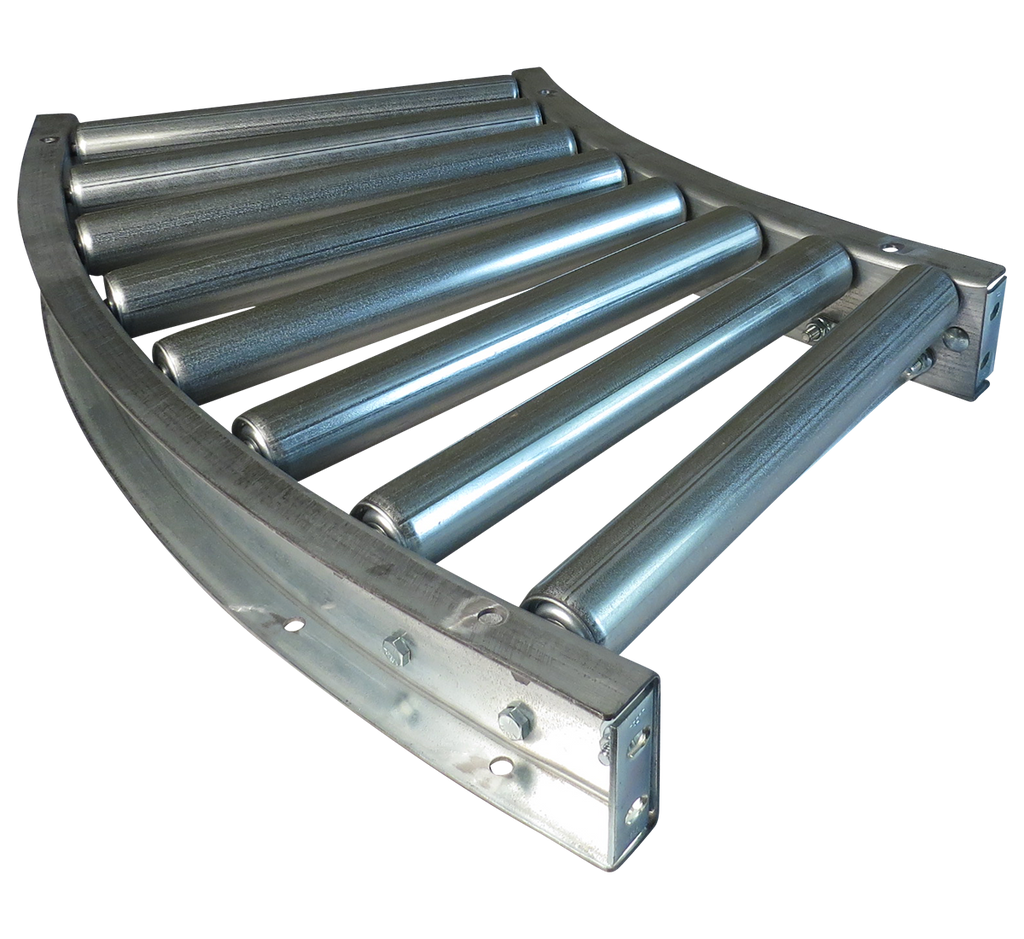

The Model 7F_ _DG roller conveyor is constructed of 3-1/2" Galv Steel side channels, 1.9"x12ga Galv Stl tubing, 7/16" Hex Plain Stl roller shaft, and Butt Plate couplers.

Refer to the Roller Conveyor Selection Guide for help.

7F45DG03B13BP Construction

  • Type: Curve
  • Angle (deg): 45
  • Inner Radius (in): 30
  • Between Frame (in): 13
  • Roller Centers (in): 3
  • Roller Bearing: Commercial Light Oil
  • Sleeve: none
  • Roller Capacity (lbs): 270
  • Frame Capacity (lbs/ft): 120 on 10' support centers, 600 on 5' centers
  • Weight (lbs): 62.6

7F_ _DG Configurations

  • Roller Centers (in): 3, 4.5, 6
  • Straights (ft): 5, 10
  • Curves (deg): 45, 90
  • Sleeve: none
