7F90CGAB03B16BP

i LEAD TIME: 10 working days
$774.30

Product Model Information

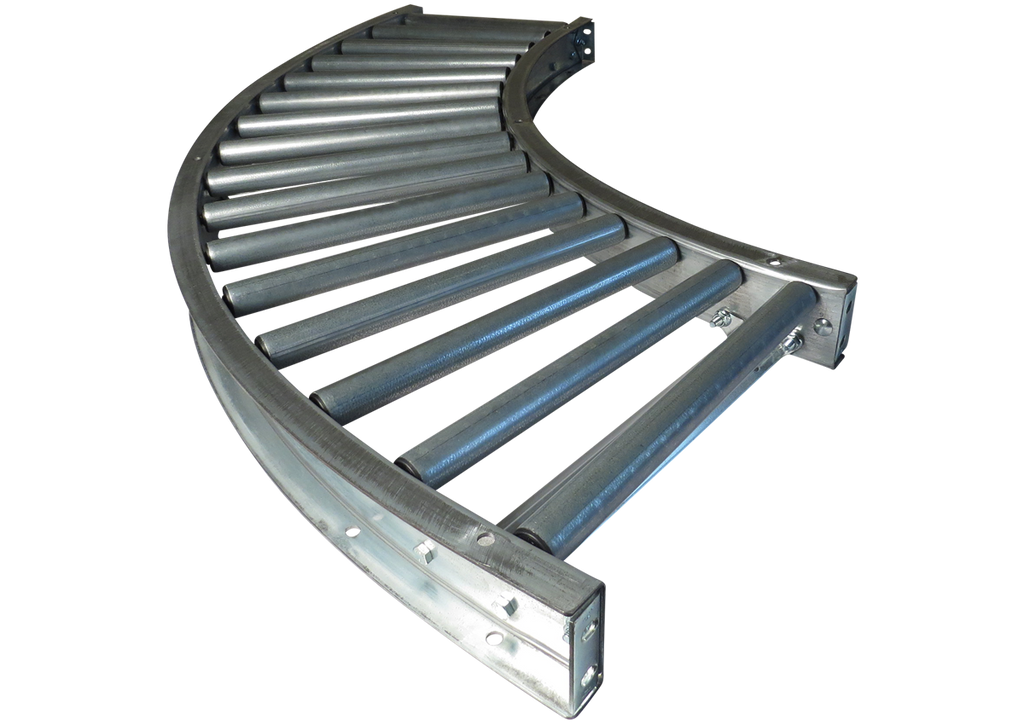

The Model 7F_ _CG roller conveyor is constructed of 3-1/2" Galv Steel side channels, 1-3/8"x16ga Galv Stl tubing, 7/16" Hex Plain Stl roller shaft, and Butt Plate couplers.

Refer to the Roller Conveyor Selection Guide for help.

7F90CGAB03B16BP Construction

  • Type: Curve
  • Angle (deg): 90
  • Inner Radius (in): 30
  • Between Frame (in): 16
  • Roller Centers (in): 3
  • Roller Bearing: Precision Abec
  • Sleeve: none
  • Roller Capacity (lbs): 484
  • Frame Capacity (lbs/ft): 120 on 10' support centers, 600 on 5' centers
  • Weight (lbs): 111.3

7F_ _CG Configurations

  • Roller Centers (in): 1.5, 3, 4.5, 6
  • Straights (ft): 5, 10
  • Curves (deg): 45, 90
  • Sleeve: none
