8F05EFG03B17BP

i LEAD TIME: 10 working days
$253.80

Product Model Information

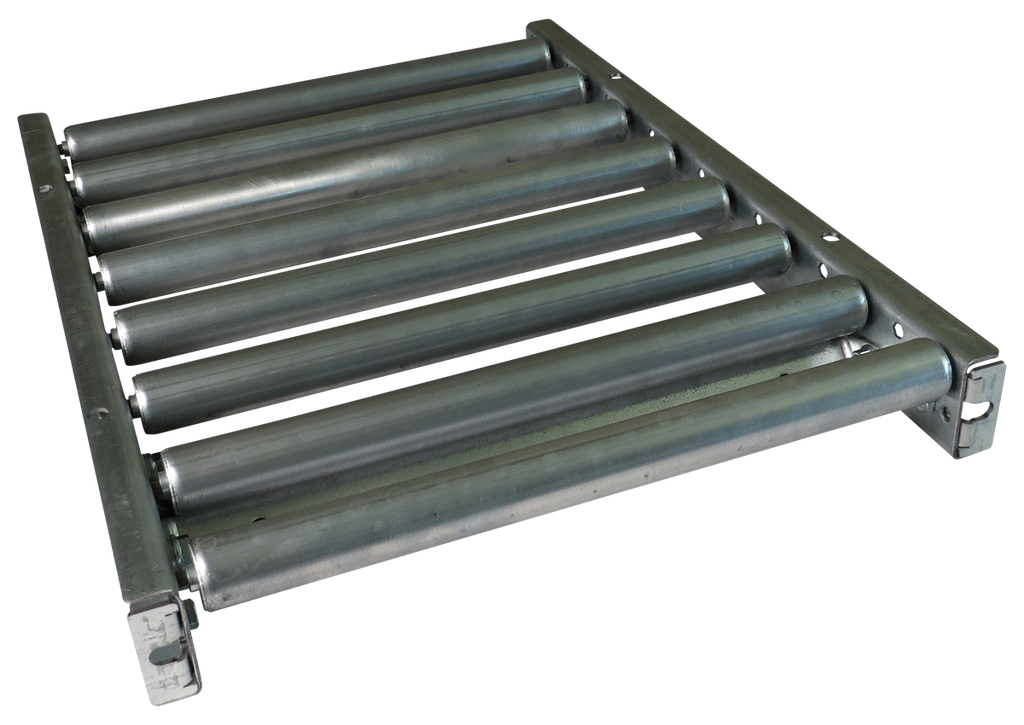

The Model 8F_ _EFG roller conveyor is constructed of 2-1/2" Galv Steel side channels, 1-3/8"x18ga Galv Stl tubing, 5/16" Hex Plain Stl roller shaft, and Butt Plate couplers.

Refer to the Roller Conveyor Selection Guide for help.

8F05EFG03B17BP Construction

  • Type: Straight
  • Length (ft): 5
  • Between Frame (in): 17
  • Roller Centers (in): 3
  • Roller Bearing: Commercial Light Oil
  • Sleeve: none
  • Roller Capacity (lbs): 94
  • Frame Capacity (lbs/ft): 36 on 10' support centers, 260 on 5' centers
  • Weight (lbs): 107.8

8F_ _EFG Configurations

  • Roller Centers (in): 1.5, 3, 4.5, 6
  • Straights (ft): 5, 10
  • Curves (deg): 45, 90
  • Sleeve: none
