Product Model Information

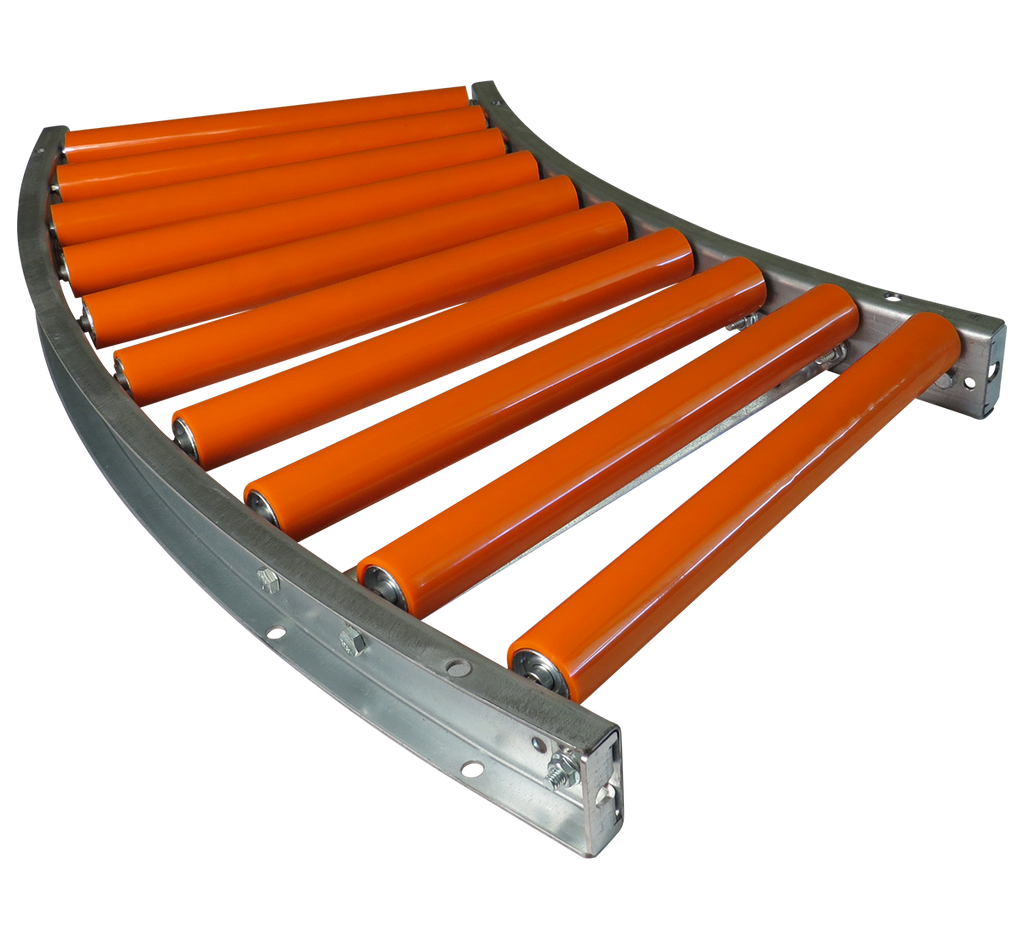

The Model 8F_ _EFG roller conveyor is constructed of 2-1/2" Galv Steel side channels, 1-3/8"x18ga Galv Stl tubing, 5/16" Hex Plain Stl roller shaft, and Butt Plate couplers.
Refer to the Roller Conveyor Selection Guide for help.
- Type: Curve
- Angle (deg): 45
- Inner Radius (in): 36
- Between Frame (in): 13
- Roller Centers (in): 3
- Roller Bearing: Commercial Light Oil
- Sleeve: Orange Polyurethane
- Roller Capacity (lbs): 94
- Frame Capacity (lbs/ft): 36 on 10' support centers, 260 on 5' centers
- Weight (lbs): 59.4
8F_ _EFG Configurations
- Roller Centers (in): 1.5, 3, 4.5, 6
- Straights (ft): 5, 10
- Curves (deg): 45, 90
- Sleeve: 1/8 Orange Polyurethane
