BCOC6XIN

i LEAD TIME: 10 working days
$0.46

Product Model Information

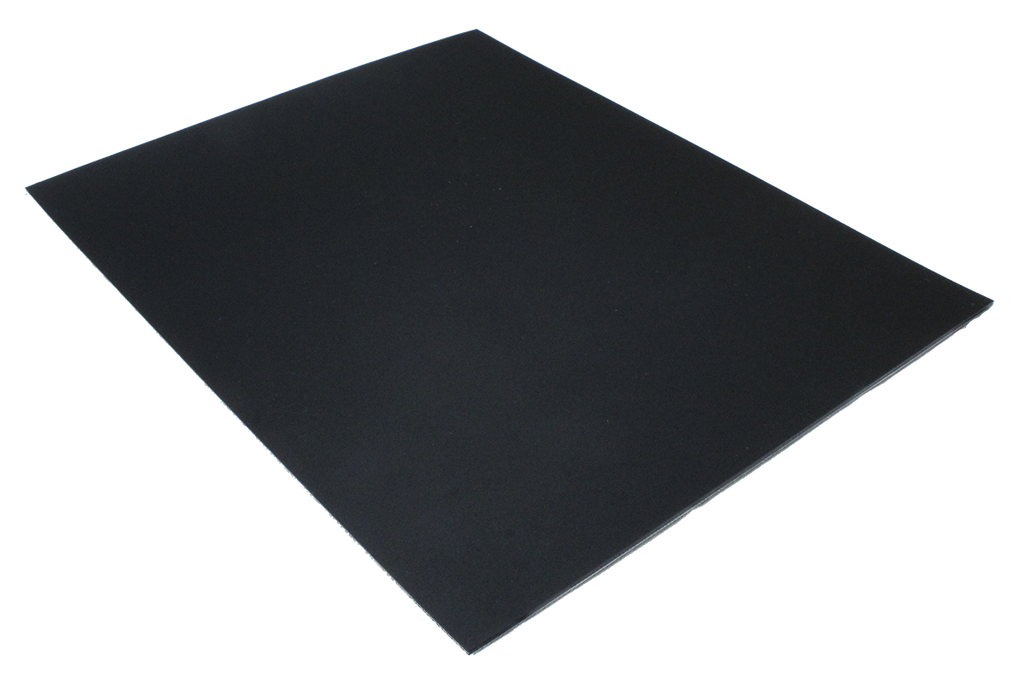

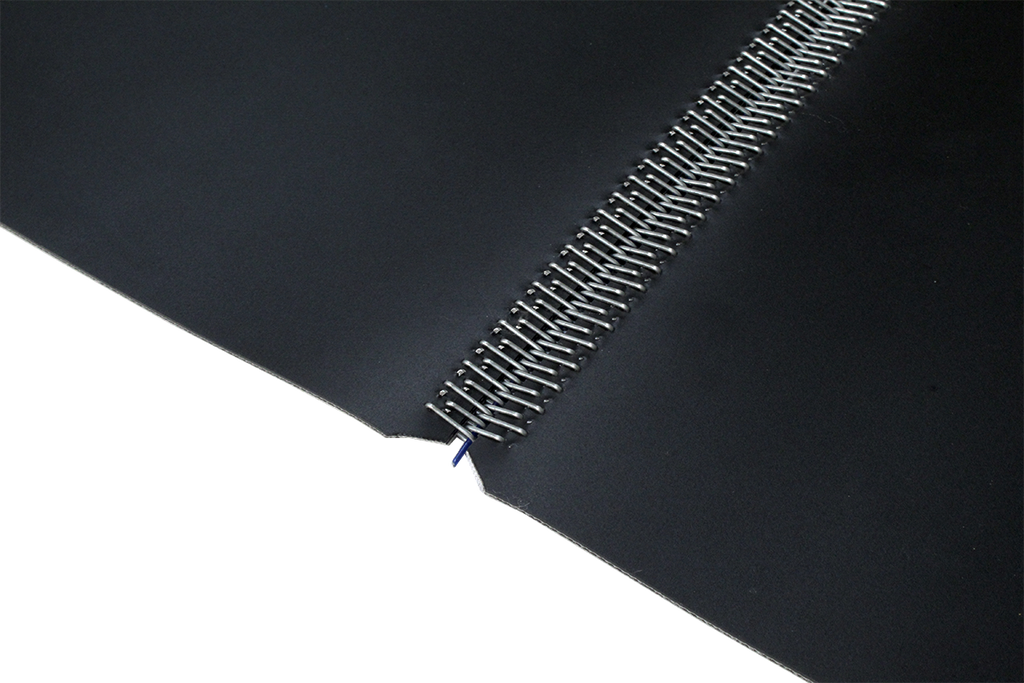

Our Counter Top Belt is well suited grocery check-out counters, newspaper handling, electronic components, and tape cartridges. Belts can be purchased with or without optional factory installed lacing. If a non-whole foot length is desired enter the next whole foot increment and in the order comments field enter the exact length desired. We recommend an endless finger factory finger splice for this belt or CLPR1-6 lacing.
NOTE: Belting is sold by the INCH.

Refer to the Power Belt Conveyor Selection Guide for help.

BCOC Construction

  • Color: Black
  • Surface: .024" Smooth PVC
  • Width (in): 6
  • Belt Thickness (in): 0.079
  • No of Plies: 2
  • Min Pulley Dia (in): 2
  • Temperature Range (F): 14 to 176
  • Strength (Lbs per In Width): 60
  • Coefficeint of Friction (on steel): 0.2
  • Weight Per Inch Length(lbs): 0

BCOC Configurations

  • Width (in): 6, 12, 18, 24, 30, 36
